Optimal manual wheelchair set up for an upper limb propeller

Share:

Take it offline!

This Education in Motion resource is also available as a printable PDF.

Download PDF

This month I have been asked by a clinician how can we determine what is the optimal manual wheelchair set up for an upper limb propeller. To answer this question we must first consult a few important resources:

  • Position on the Application of Ultralight Manual Wheelchairs: www.resna.org
  • Preservation of Upper Limb Function Following Spinal Cord Injury: www.pva.org

What is it?

  • 35 clinical guidelines to help optimise chair set up to prevent upper limb injury
  • Focuses on
    • // Education
    •  // Propulsion technique
    • // Equipment selection
    • // Wheel position
    • // Recommendations are transferable to other user groups

Optimal set up

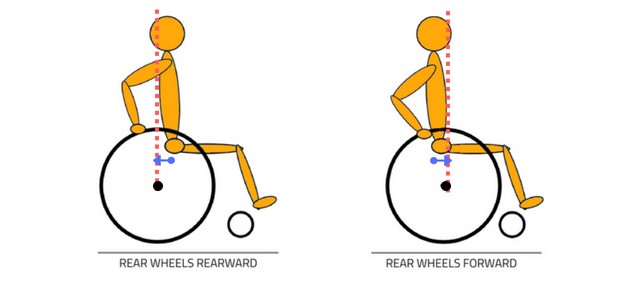

Rear wheel:

  • Tip of middle finger at centre of hub (another method to support CPG 9)

  • Why? So Centre of Mass (for maximum manoeuvrability) is positioned over hub of wheel
  • 70-80% of user weight over rear wheels (CPG 8 - Adjust the rear wheel as far forward without compromising stability)

  • 120° of elbow flexion at top of push cycle (CPG 9 - hand top dead centre – elbow angle should be 100-120°)

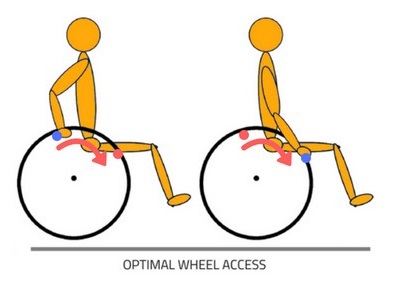

  • Optimal wheel access – 10 to 2 (CPG 5 - avoid extreme positions of the wrist)

  • Use wheel camber – increases lateral stability and brings top of wheel closer to user – more efficient push phase (RESNA 2012)

Front castors:

  • 20-30% user weight over castors
  • Use smallest castor fork – reduces turning circle and obstruction with feet or footplates

Why?

// Minimise resistance to turning & more efficient propulsion

// Provides compromise between indoor manoeuvrability and outdoor terrain navigation

Quickie wheelchairs are designed to be easily configurable to meet end user needs and also set up according to these guidelines:

// Folding frame wheelchairs – Q2, Q2 Lite, Xenon2, Xcape

// Rigid Framed wheelchairs – 7R, 5R

RESNA (2012) emphasise the importance of achieving an optimal set up for all manual wheelchair users to maximise function and independence and reduce potential injury advising that: “The person cannot conform to the wheelchair, but the wheelchair must conform to the individual.”
