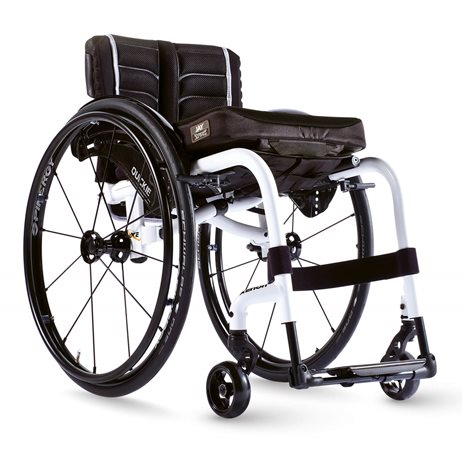

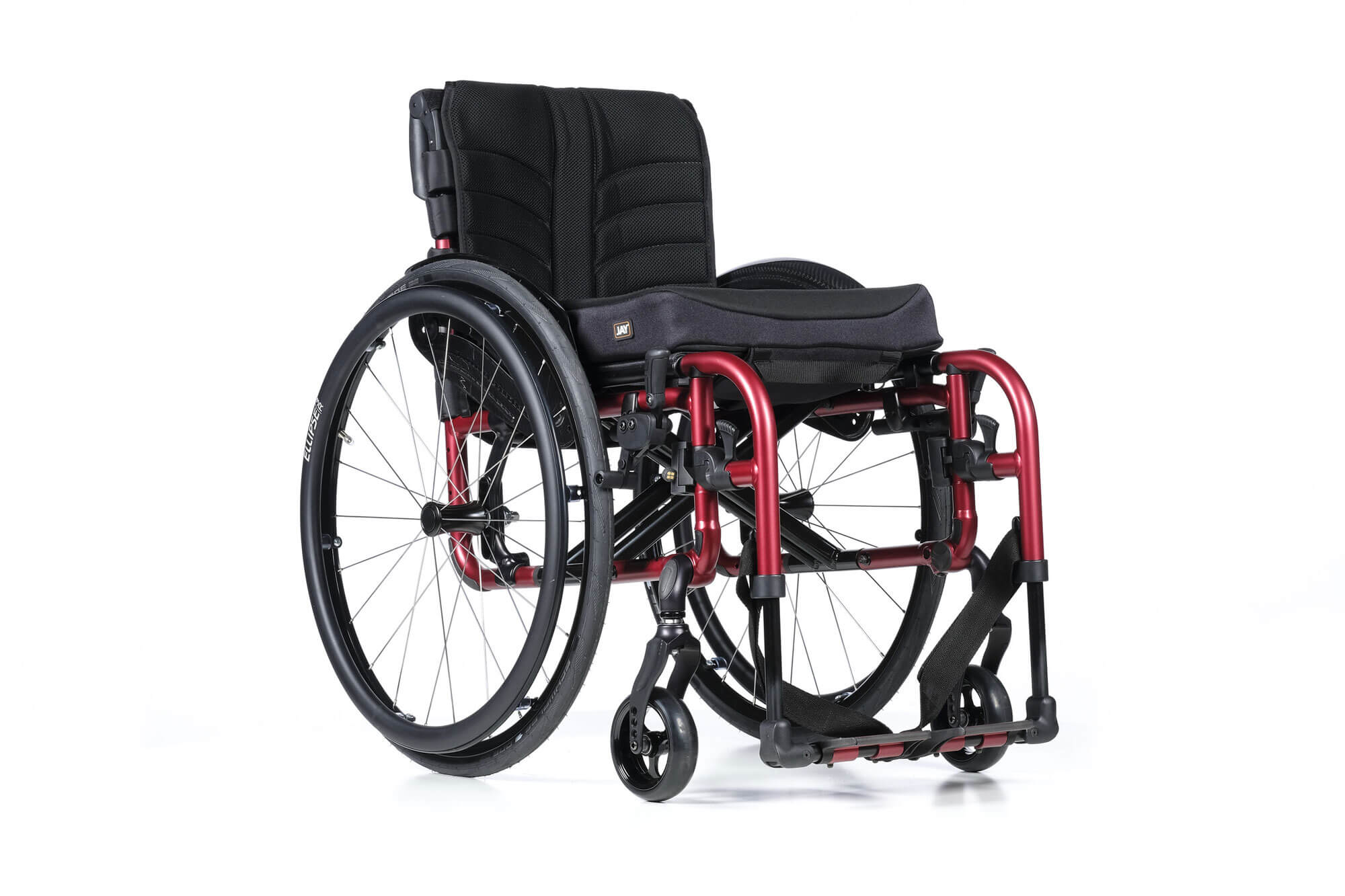

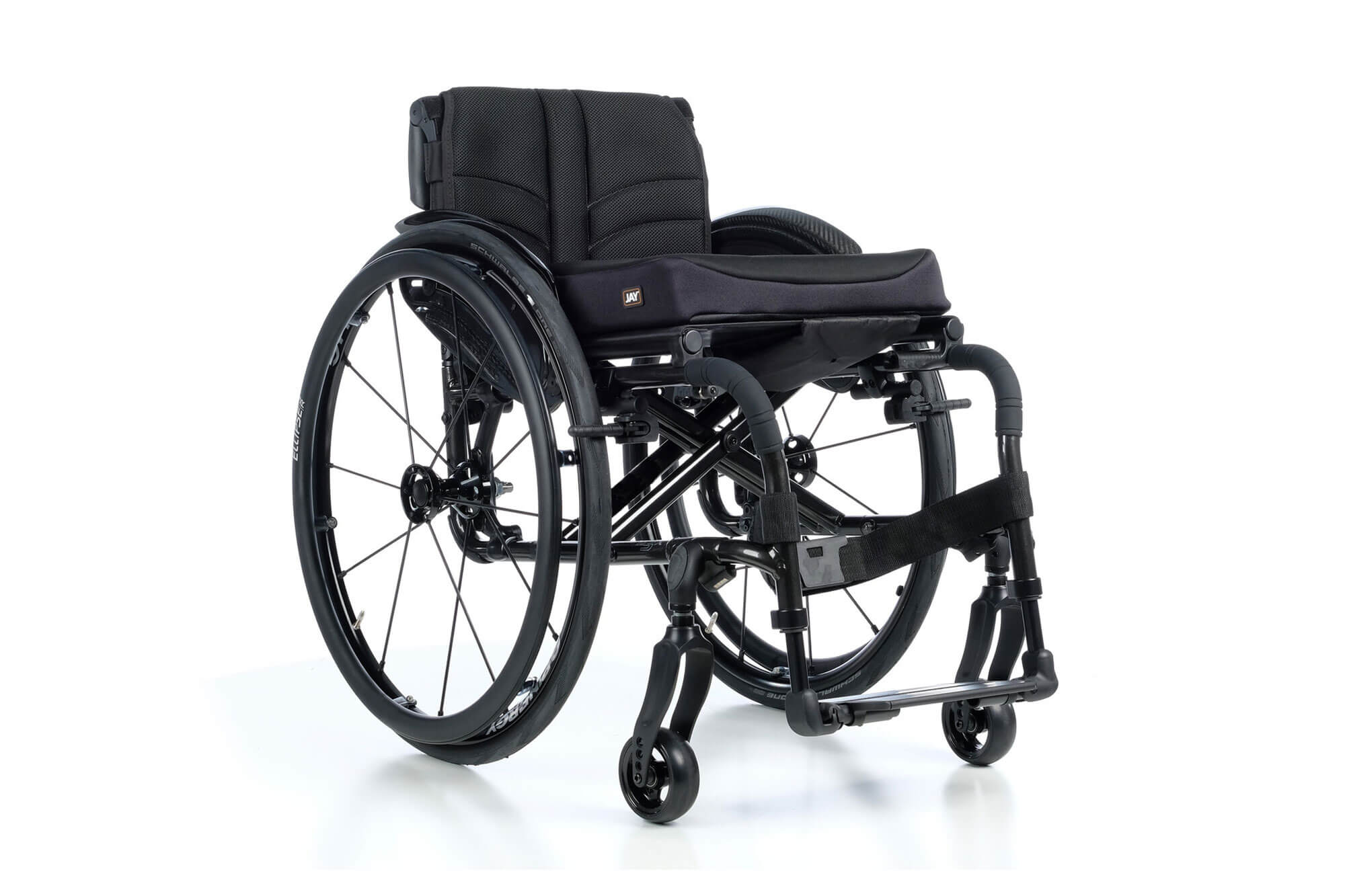

QUICKIE QS5 XFolding Wheelchair

Experience FreeFold and save over 40% energy with every fold!

Experience FreeFold and save over 40% energy with every fold!

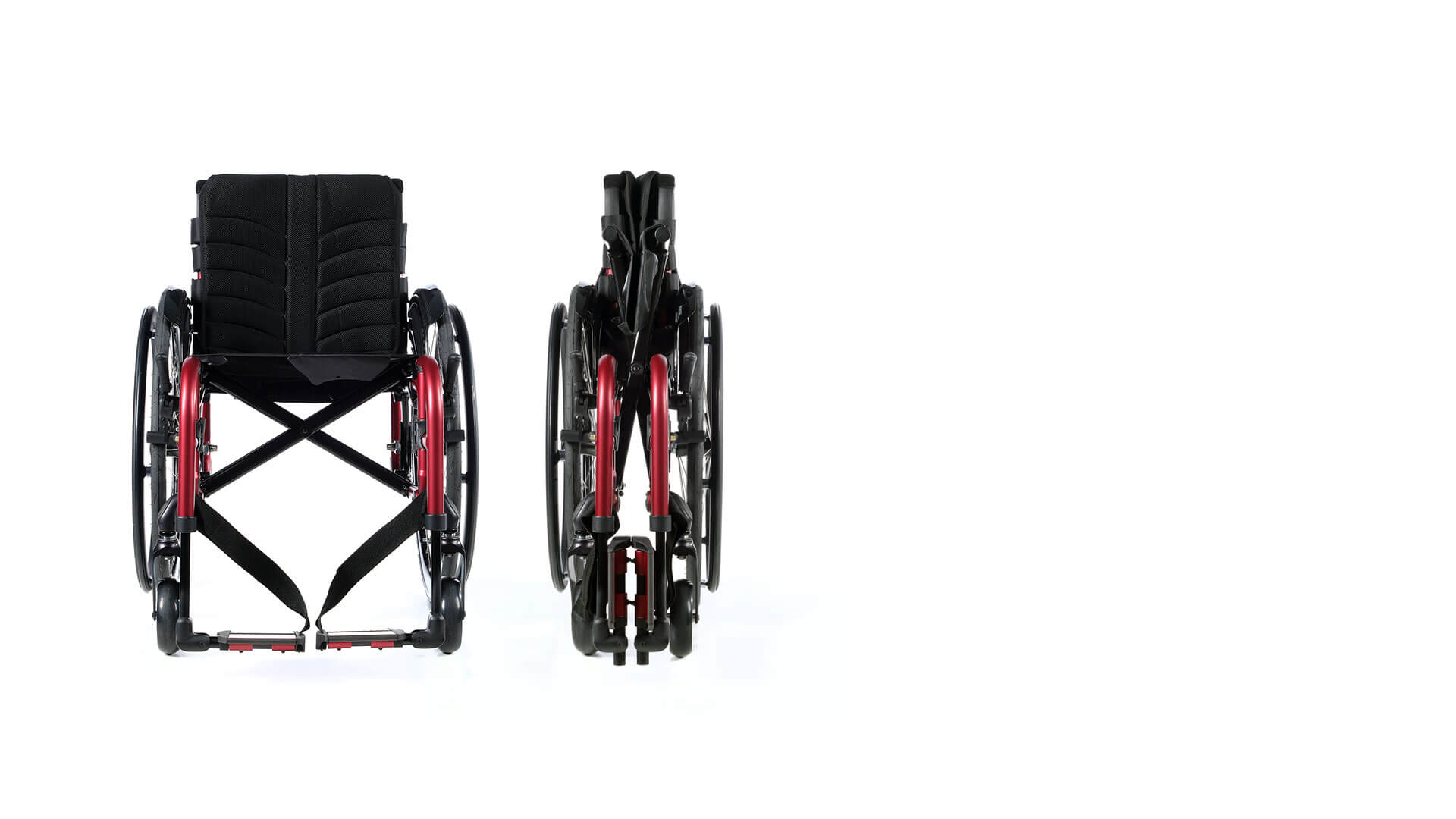

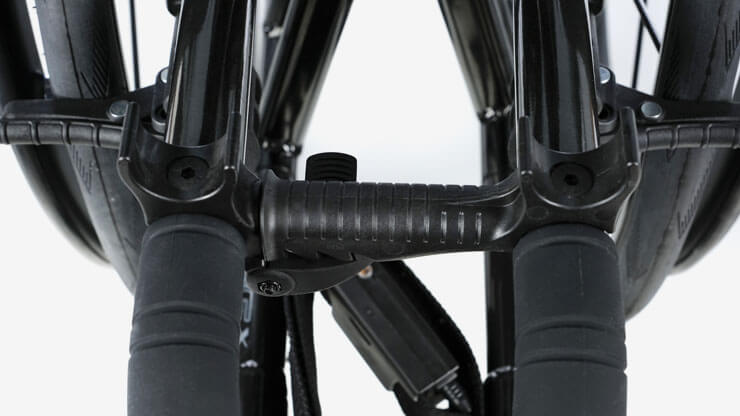

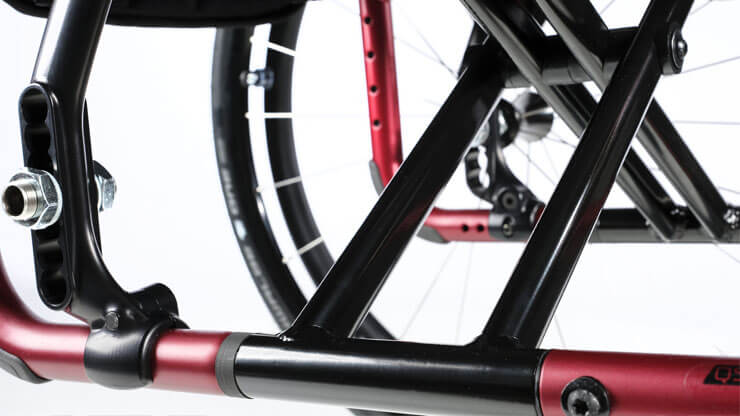

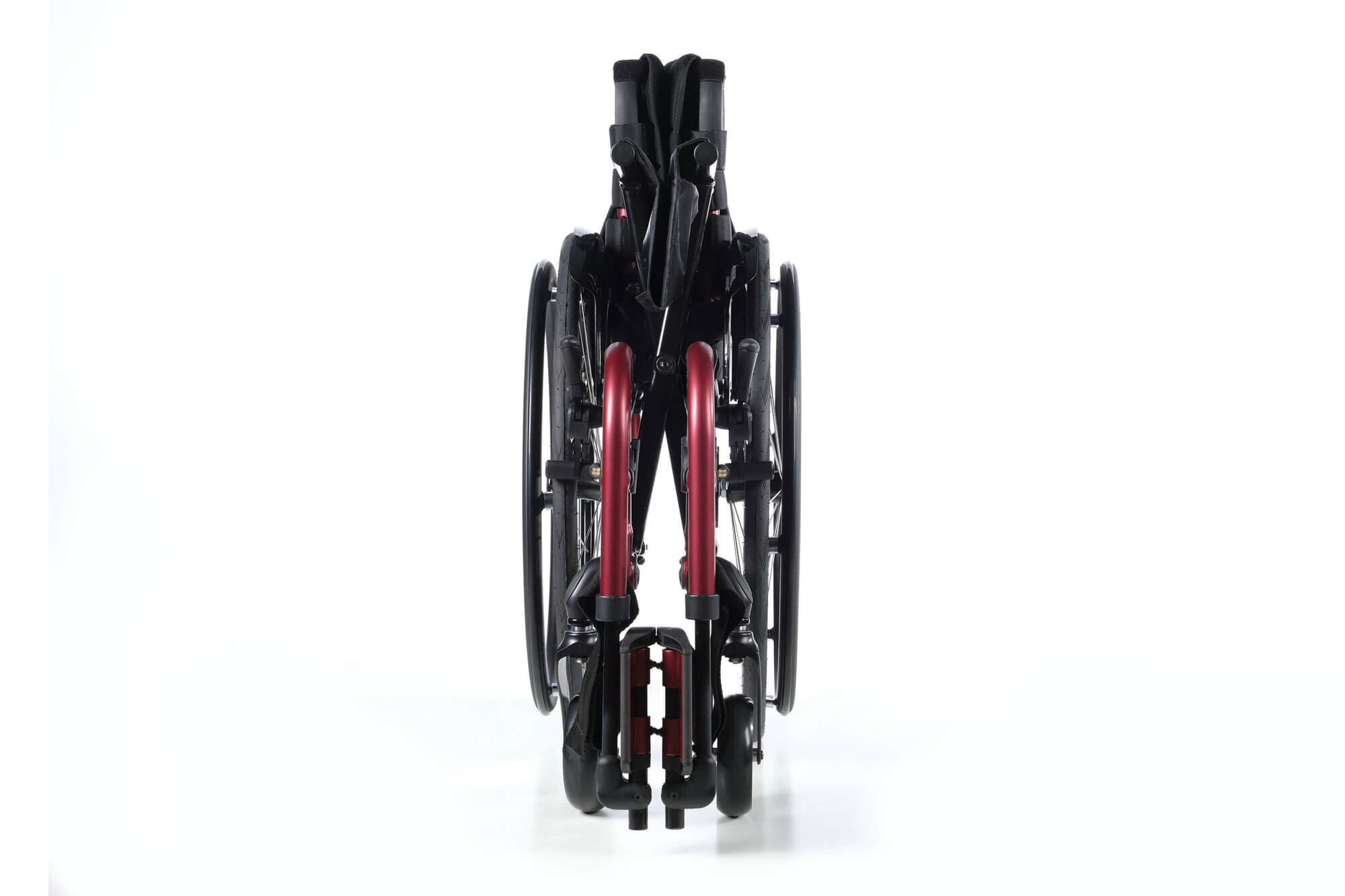

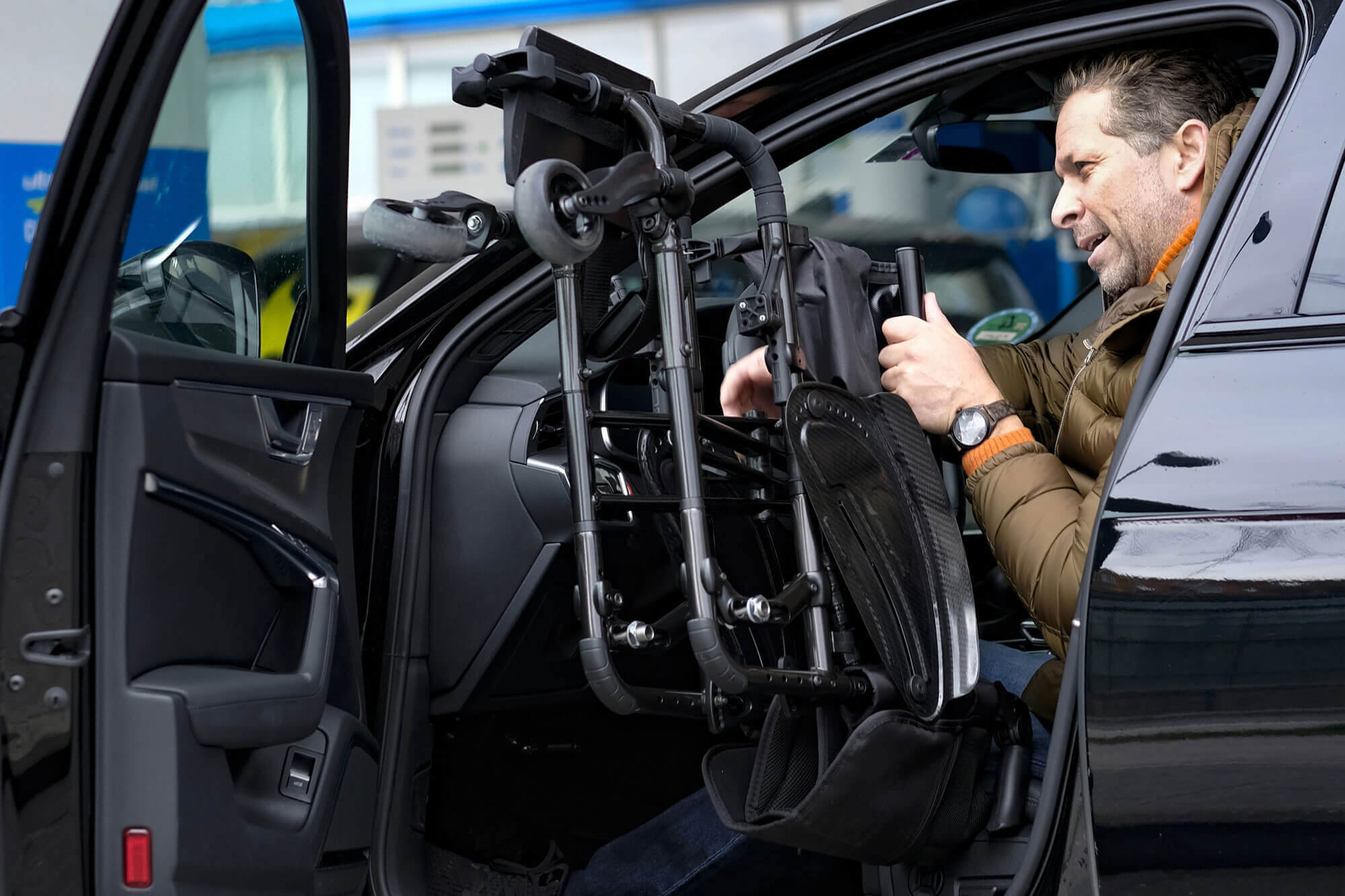

Introducing the QUICKIE QS5 X, the wheelchair that redefines easy folding thanks to FreeFold - an innovative cross-brace design that reduces folding forces and saves you over 40% energy with every fold! The QS5 X makes light work of lifting too, with an (optional) folding fixation that keeps your wheelchair tightly-locked to prevent any unintentional opening during transport.

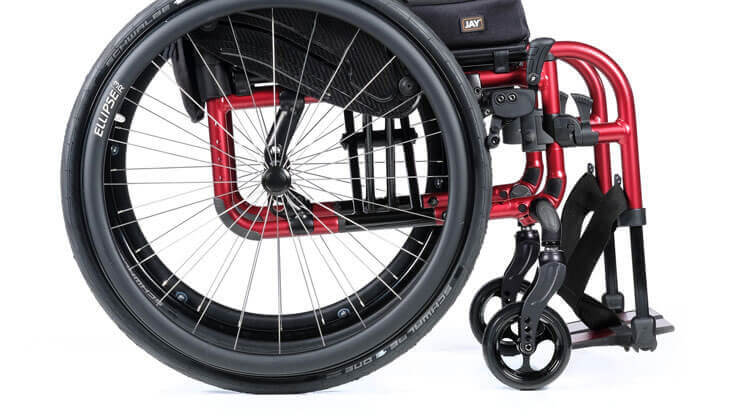

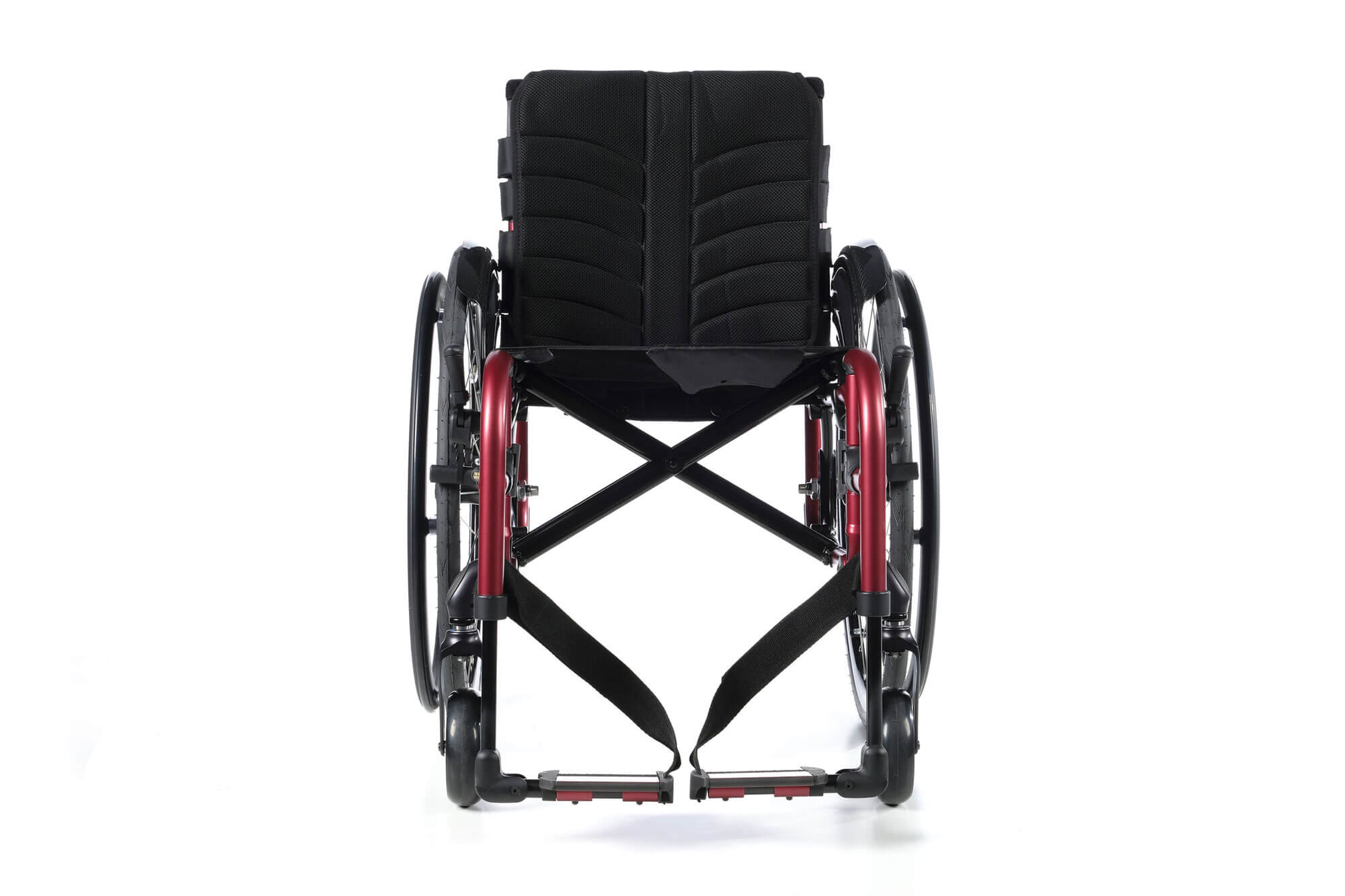

Weighing from just 7.3 kg (without wheels), it's the lightest aluminum box frame wheelchair too. Made from heat-treated 7000 series Aluminium, lock-out the frame and its oval-tubed 4-arm cross brace provides the ride performance to rival any rigid wheelchair. Saving not just energy, but your shoulders too.

Request a brochure or demo
Crash Tested

3D Visualizer

Unleash your individuality and create your own QS5 X!

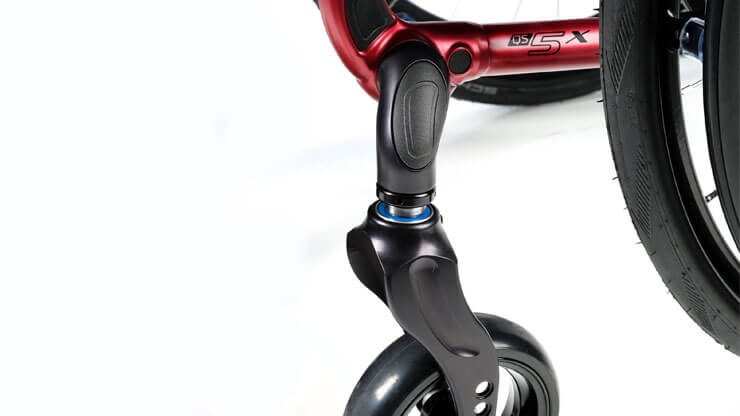

From push handles to castor forks, our online QUICKIE QS5 X visualizer will help you to create the QS5 X of your dreams! Style your ride with 24 vibrant frame colours, 4 castor fork and 4 rim colours. You can even match your cross-brace colour to your frame! Just click the button below to begin.

Start

Unleash your individuality and create your own QS5 X!

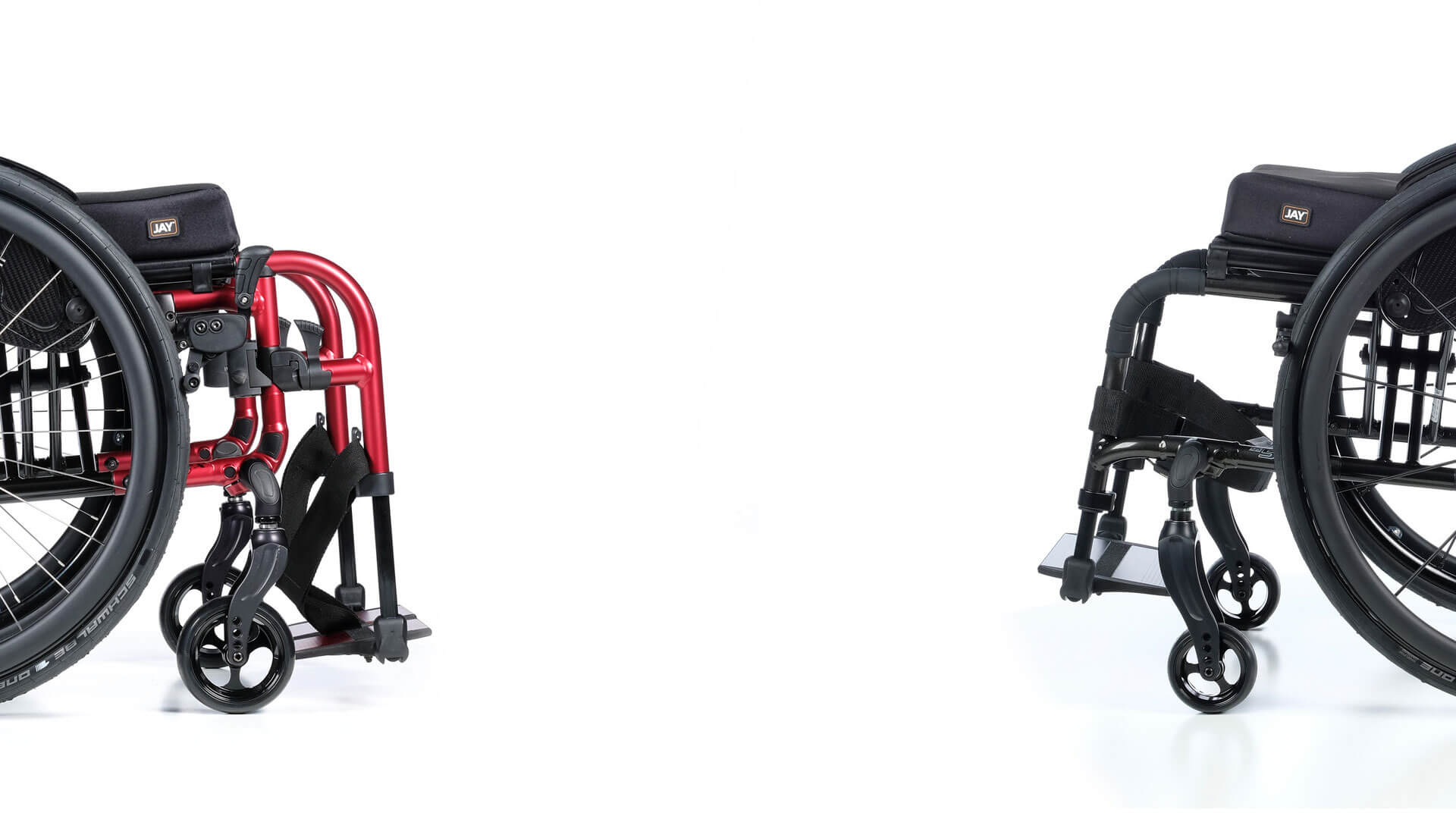

Fixed-Front or Swing-Away?

Frame Versions

Fixed-Front or Swing-Away?

The QS5 X is available with two different frame versions - Fixed-Front and Swing-Away.

The Fixed-Front version has footrests that are permanently attached to the chair frame, providing additional stability and support. This feature can be particularly beneficial for people with higher positioning demands, as it helps to keep the legs in an ideal position.

The Swing-Away version has footrests that can be swung away to the side, which enables a safe and comfortable transfer into the chair, especially from a standing position. By removing the footrest, it´s possible to position the wheelchair closer to the object you want to transfer on, furthermore the pack-size of the wheelchair will be minimised.

Arrange a QUICKIE QS5 X demonstration today.

Just want a brochure? Select the option below and we'll email you one instead. Read more about our data processing guidelines on our privacy policy.

How do we use your information for a demonstration?

Sunrise Medical will use your details to send you an email acknowledgement and to contact you to arrange your demonstration with a Sunrise Medical dealership. Don't worry, we won't pass your personal data to anyone before speaking to you first and asking for your consent. The information you give us will be stored in the UK, United States and Australia, and will be kept as long as necessary to fulfill your request (and no-longer than 1 year).

Sign up for email newsletters

Dimensions
Width:SW + 180/240/270 mm at 0, 2, 4° camber and 25" wheels
Length:1113 mm
Height:1020 mm
Seat Width:340 - 520 mm (in 20 mm steps)
Seat Depth:340 - 500 mm
Front seat height:360 - 540 mm
Rear seat height:350 - 520 mm
Backrest Height:250 - 500 mm
Frame Angle:Swing Away: 70/80/90°, Fixed-Front: 75/85°
Maximum Safe Slope:
Rear Wheel Size:22", 24", 25", 26"
Front Wheel Size:4", 5", 6", 7"
Performance/Weights
Frame Type:Folding
Frame Version:Swing Away / Fixed Front
Material:7000 Series Aluminium
Maximum User Weight:140 kg
Total Weight:Swing Away: From 10.1 kg, Fixed Front: From 9.9 kg
Dismantled Weight:Swing Away: From 7.5 kg (without rear wheels), Fixed Front: From 7.3 kg (without rear wheels)
Transportation
Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19 / WC19.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
