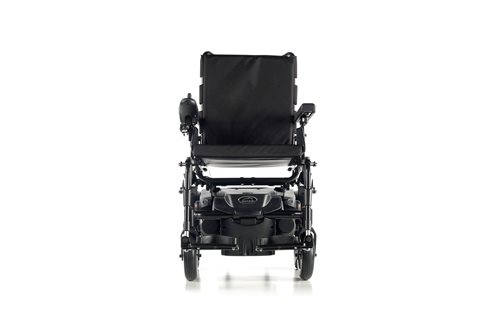

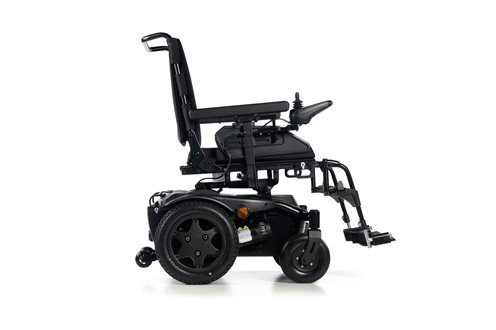

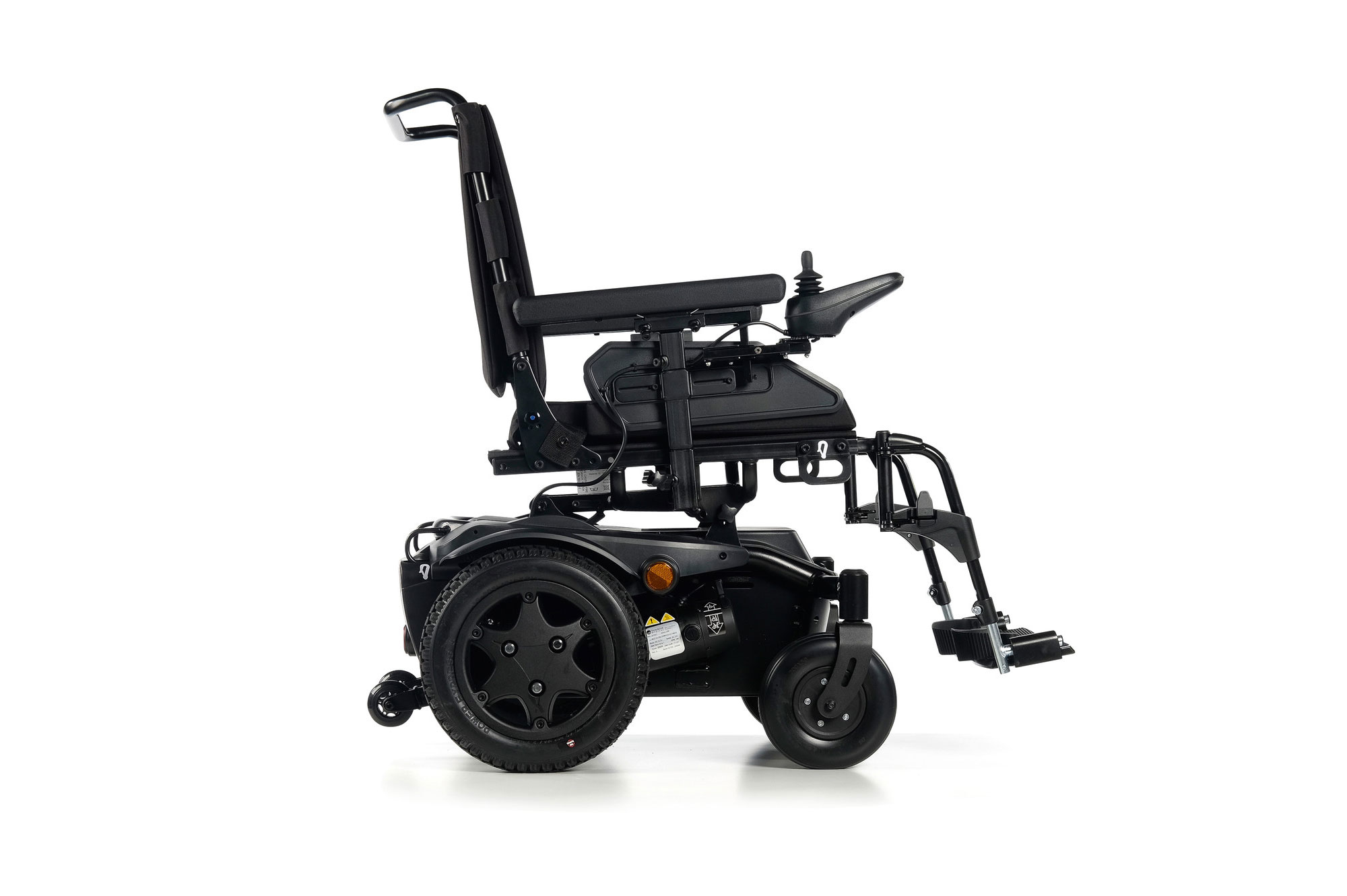

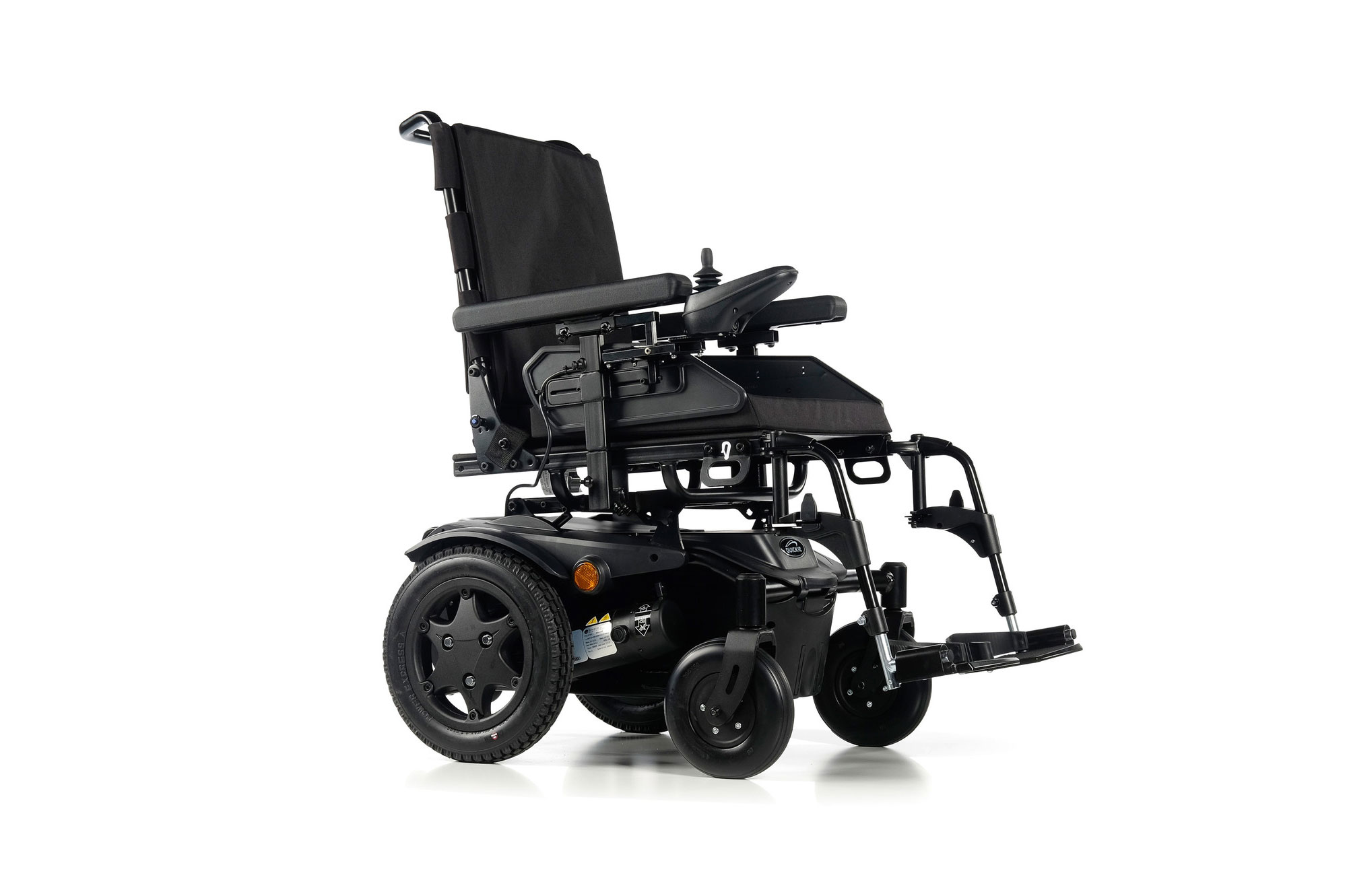

QUICKIE Q100 RRear-Wheel Power Wheelchair

Designed to challenge indoor/outdoor powerchair standards, the Q100 R is ultra-compact for indoor agility, with stability and performance that‘s just as at home on the city streets. Smart design, smart looks - all at a smart price.

The ultra-compact indoor/outdoor entry level powerchair.

QUICKIE Q100 R uses an innovative testing method called SMART base technology. This helped us to understand how geometry changes to a drive base can affect performance, creating a precision-measured TRUE indoor/outdoor powerchair.

From SMART base development the Q100 R powerchair boasts an ultra-small footprint of 540 mm wide and 1010 mm long, with a tiny 1600 mm turning circle, so navigating even the tightest of spaces is a breeze.

Going out? The QUICKIE Q100 R provides a stable ride on urban roads and paths, ideal for those day trips out.
Unbelievably light at 95 kg, the Q100 R is also easy to hoist in and out of your car.

This wheelchair is a highly configurable product with many options and accessories. Your local authorised dealer will be able to provide a price quotation.

Contact

SMART Base Technology

All indoor/outdoor powered wheelchairs face the same problem... SMART BASE Technology is how QUICKIE solved it.

Our vision was to create a TRUE indoor/outdoor powerchair with super-tight indoor manoeuvrability and no compromises on outdoor stability and performance.

But how do you design such a finely-balanced powerchair?

A large drive-base means difficulty when manoeuvring in tight environments. Too small and it becomes tippy with a loss of traction. With SMART Base Technology we were able to test 100‘s of configurations to find the perfect combination.

The result is the QUICKIE Q100 R. A legitimately compact entry-level powerchair that delivers the very-best traction, stability and even the ability to climb kerbs of up to 100 mm (4“).

DESIGNED TO BE IN YOUR SPACE

Whether it‘s around the home, the local cafe or shopping mall, the Q100 R is in-touch with its environment inside and out. With an ultra-slim base and tiny turning circle, even the smallest place will feel big.

So narrow-minded

Fed up of clipping the side of your powered wheelchair or scratching the paint work when squeezing through a tight doorway? The Q100 R‘s ultra-slim base width of 540 mm can go where other indoor/outdoor powerchairs won‘t fit - so even negotiating narrow paths or packed tables at your favourite cafe will be a breeze.

Go where other powerchairs can‘t

Precision-measured in length, at just 1010 mm long, the Q100 R will conveniently fit in-and-out of through floor lifts and other short spaces without the traditional sacrifice of stability.

Turn wherever you go

Get out of any tight-spots with the Q100 R and its ultra-compact turning circle. Effortlessly turn in narrow hallways, kitchens and other restricted spaces without the need for complicated manoeuvres.

ACCESS ALL AREAS

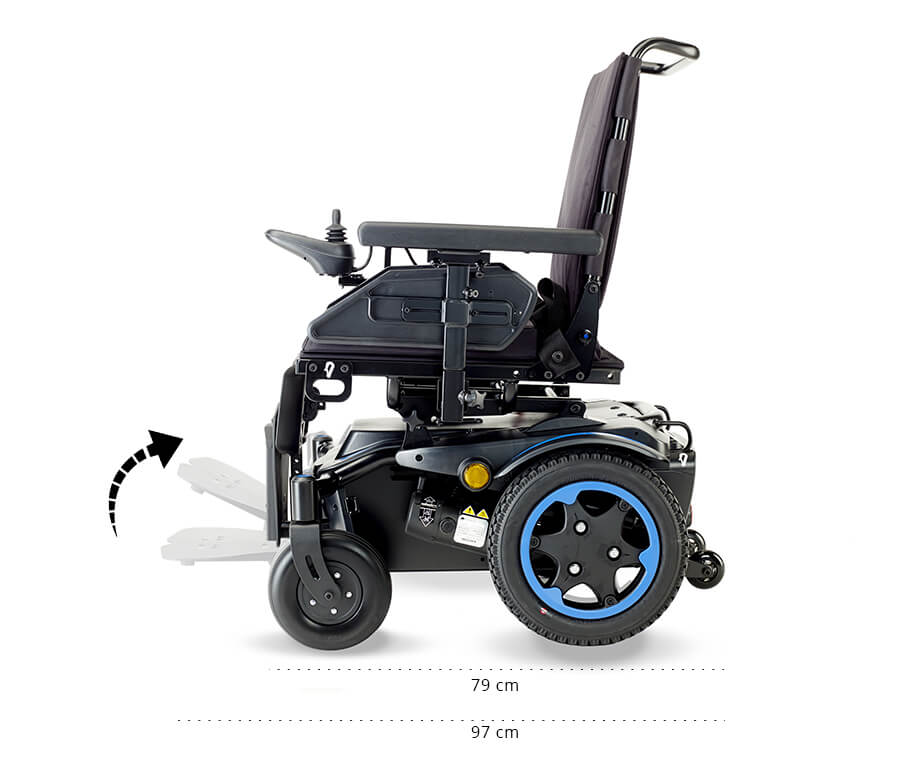

The legrests and controller can also swing outwards, so the Q100 R can get even closer to objects like tables and chairs for an easier transfer in-or-out of your powerchair.

The small powerchair that's big on going out

Popping out? The Q100 R‘s indoor capabilities are just as at home outdoors. Painstakingly researched, its compact dimensions provide highly-deceptive traction and stability over a variety of terrains, hills and even when tackling kerbs.

Never an up-hill-struggle

Indoor/outdoor powerchairs don‘t traditionally cope well with steep gradients - a problem we solved with SMART Base Technology. Precision-testing determined that a 1010 mm base-length provides the best stability to prevent tipping and keep you safe - even when travelling up hills of 6 degrees.

SMART base technology helped to calculate not only the dimensions for a compact base, but also the ideal seated position for maximising traction between the drive-wheel and the ground. Combined with the Q100 R drive-wheel suspension, you‘ll enjoy the kind of safe, smooth and responsive ride that‘s normally expected from a larger powerchair.

Don‘t let kerbs get in the way

Need a little assistance climbing obstacles? The Q100 R's low-impact kerb climber will tackle kerbs of up-to 100 mm (4“) at low-speed and even from a standing-start (so your seated position will be maintained whilst transitioning up the kerb).

The power to get you there

Powered by punchy 55Ah batteries, the Q100 R electric wheelchair loves a spin around town and longer city trips. With the stamina to go up to 31 km (19 miles) on a single charge, you‘ll have plenty of time to stop-off for other adventures along the way.

a compact package for easy transportation

The Q100 R powerchair weighs a trim 95 kg, so can be hoisted in and out of your vehicle with ease. Worried about space? With a fully fold-down back and removable legrests/armrests, it‘ll fit snugly in most cars or nicely store away at home.

READY TO ROAM

Primed for public transport, the intuitive Q100 R powered wheelchair is so compact and manouverable, getting on-and-off trams, buses and trains is a breeze. Prefer to travel by car? The Q100 R can be compactly stored in the boot or used as a seat whilst travelling.

The small powerchair that's big on going out

Sit back and relax

The Q100 R‘s seating has been designed to fit you. With plenty of settings and a 5-strap tension adjustable back to meet postural requirements, take comfort in knowing that if your needs change, so can your seat.

Seat adjustments include:

Seat width from 430-480 mm reduced to 380 mm
with optional in-rig kit
Seat depth from 405 - 510 mm
Optional Legrest width from 15 - 19''
Backrest angle from 0, 4, 8 and 12 degrees
Seat angle from 0, 3 and 6 degrees
Side guard from 0 - 50 mm
Optional seat height from 450 - 490 mm
Armrest height 230 - 305 mm

Media

Specifications

Dimensions

Width:540 mm (21'')

Length:1010 mm (39.5'')

Seat Width:430 - 500 mm (17'' - 19'')

Seat Height:450 mm (17.5'')

Seat Depth:405 - 505 mm (16'' - 20'')

Seat Tilt:0° - 6°

Backrest Height:500 mm (20'')

Back Recline:0°, 4°, 8° & 12° (manual)

Turning Radius:1600 mm (63'')

Performance/Weights

Max. Range:31 km (19 miles)

Speed:6 kph

Batteries:55 Ah

Maximum Safe Slope:6°

Max Kerb Climb:70 mm - 100 mm (with Kerb Climber)

Electronics:VR2

Min. Weight:from 95 kg (incl. 55 Ah batteries)

Maximum User Weight:125 kg

Transportation

Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19 / WC19.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
