J3 Backrest Wheelchair Back

The most versatile JAY wheelchair backrest now with optional HV Technology

The most versatile JAY wheelchair backrest now with optional HV Technology

The JAY® J3® wheelchair back range offers a multitude of different widths, heighst, and contoured depth back shells to suit the clients individual positional needs. Each backrest is lightweight and adjustable, with numerous hardware choices allowing for easy installation.

Learn more about the JAY J3 with HV Technology here.

Contact

From $863

Please note this price is based upon the MSRP (Manufacturer’s suggested retail price) and may not include additional optional extras or freight and is subject to change without notice. Please see your local authorised dealer for a detailed quote.

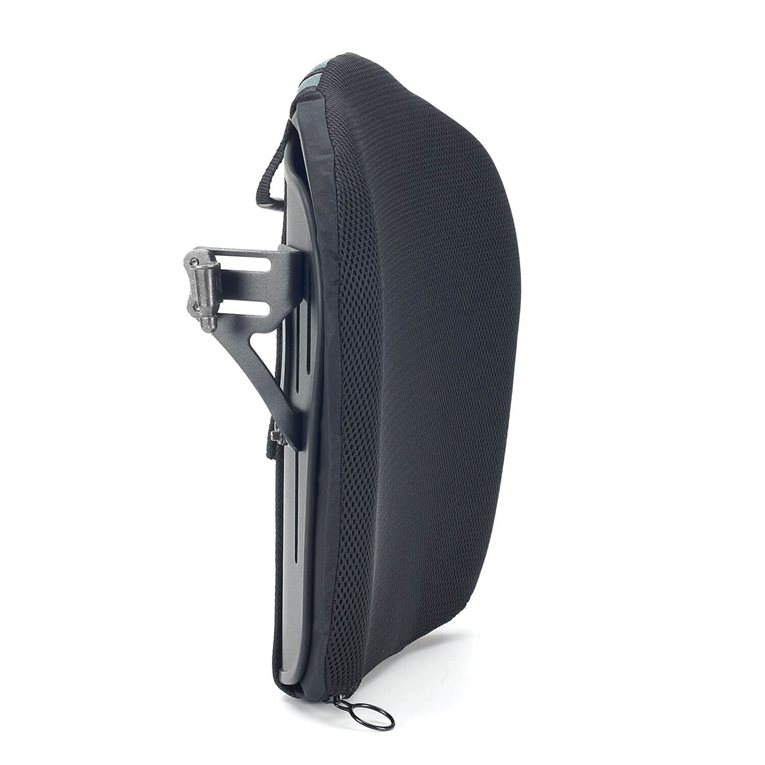

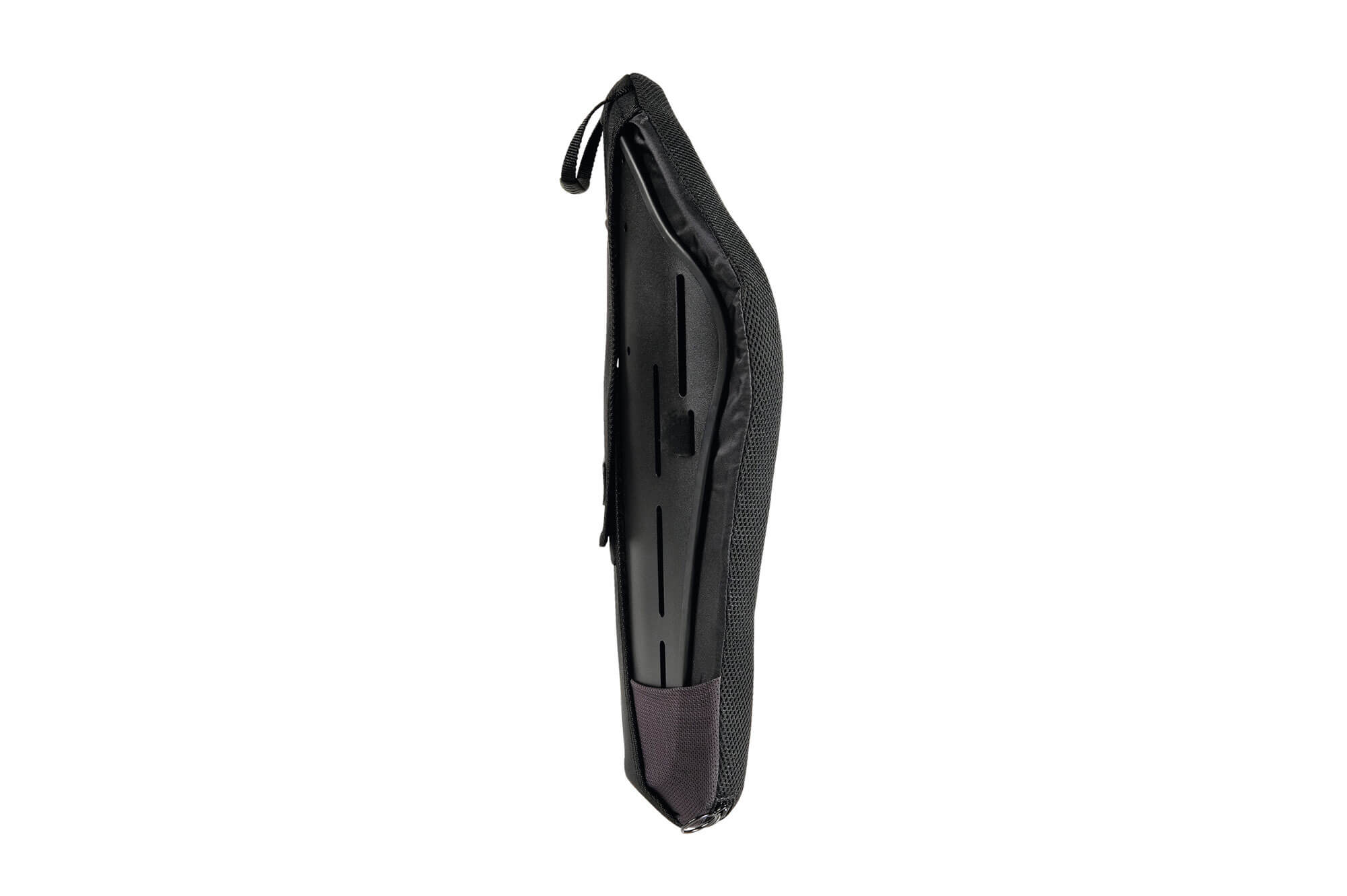

J3 Wheelchair Back by JAY

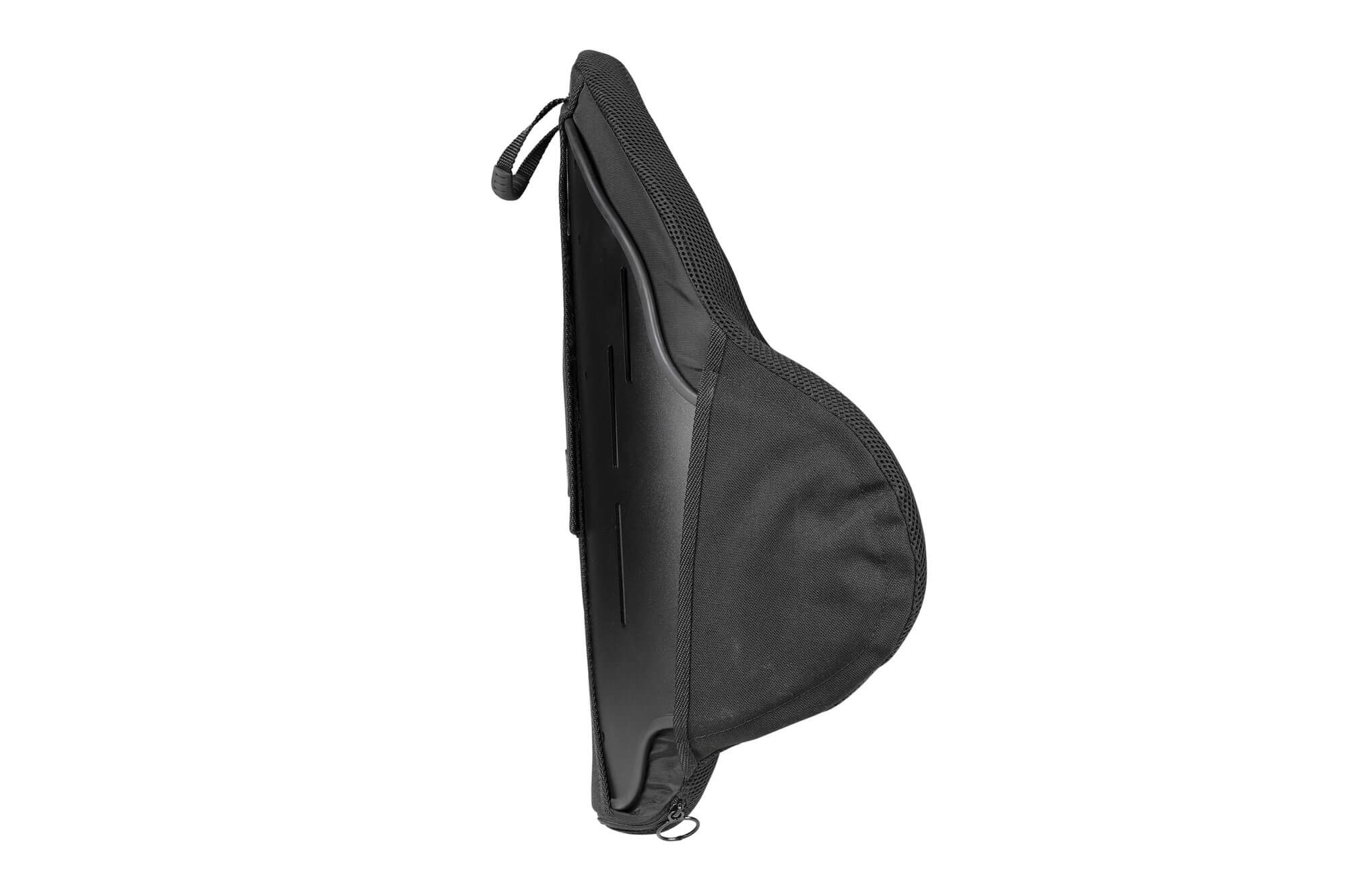

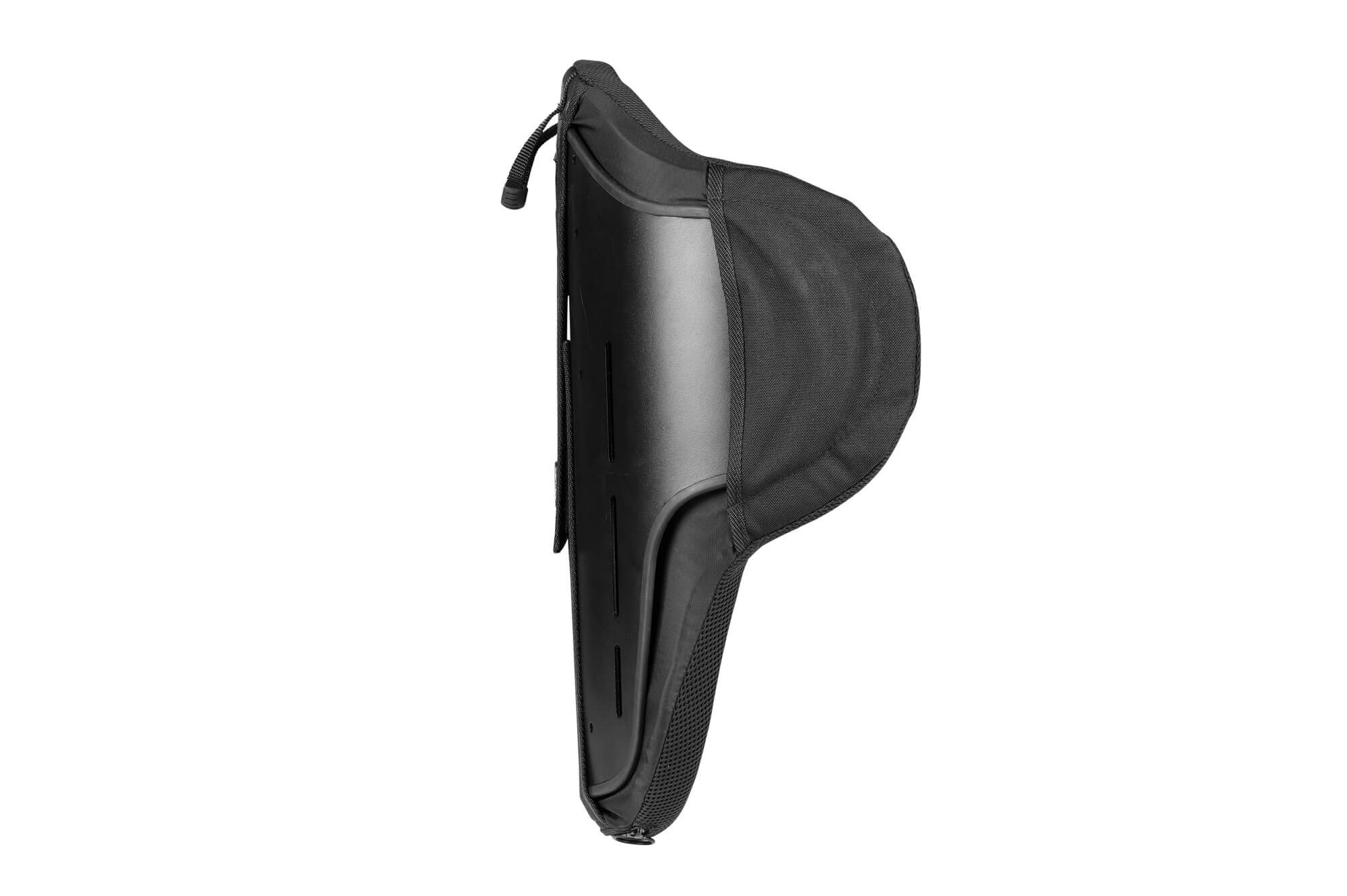

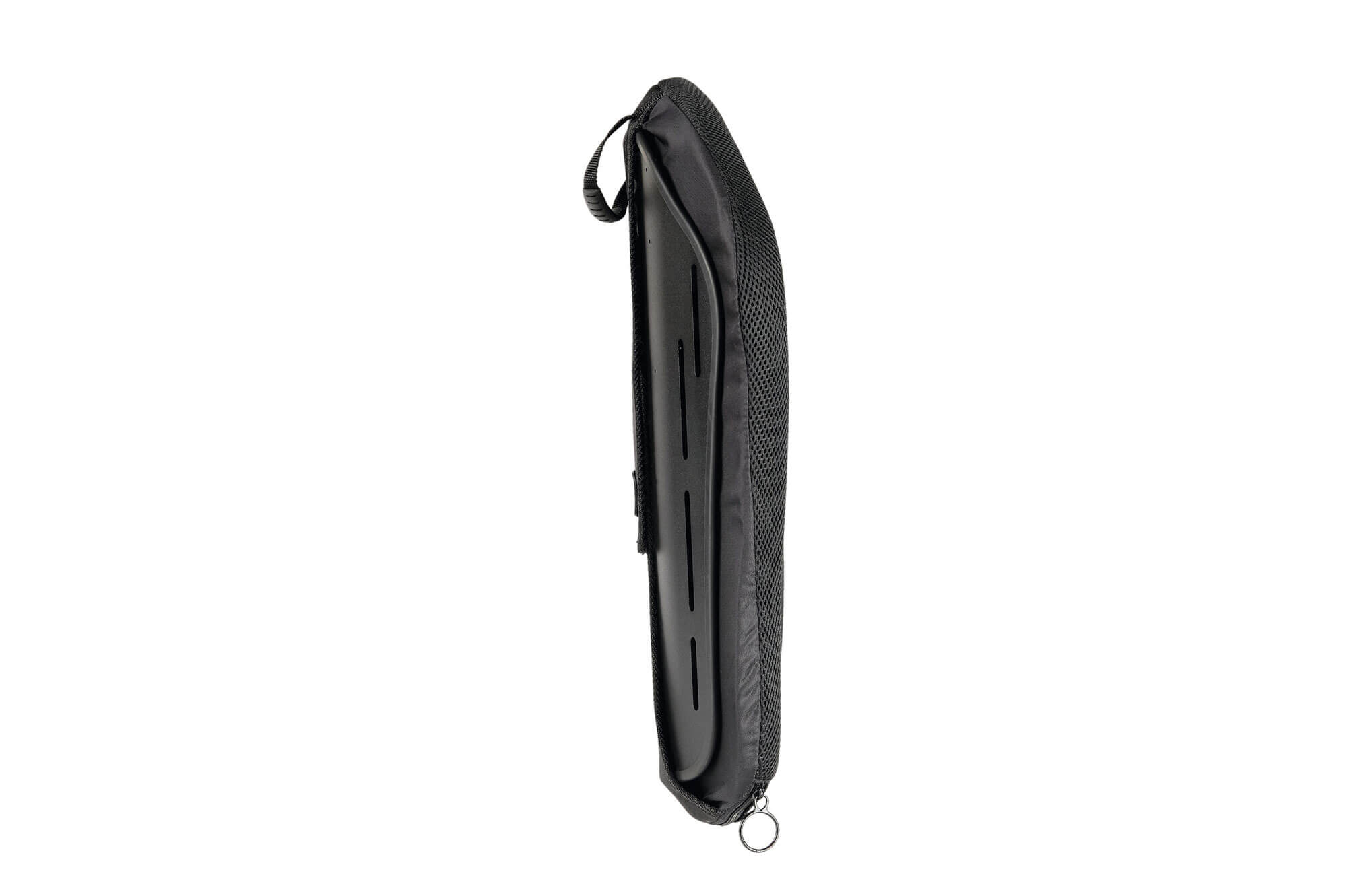

Five Contour Shapes

Five Contour Shapes

The Jay J3's solid shell is available in five contour shapes to provide posterior and lateral pelvic and lateral thoracic stability to wheelchair clients with varying postures and functional needs.

  • Posterior (PA) - 2.2" of lateral thoracic support
  • Posterior Lateral (PL) - 3" of lateral thoracic support
  • Posterior Deep (PD) - 6" of lateral support
  • Posterior Deep Lateral (PDL) - 6" of lateral thoracic support
  • Posterior Deep Contour (PDC) - 6" of lateral pelvic support

Four Support Height Levels

Four Support Height Levels

The JAY J3 wheelchair back is available in four different height levels to provide support for clients with wide ranges of torso heights and accomodate different levels of injury.

  • Lower Thoracic - 6.5" to 9.5"
  • Mid Thoracic - 12" to 15"
  • Upper Thoracic - 16.5" to 19.5"
  • Shoulder - 21" to 24"

Four Hardware Options

Four Hardware Options

The J3 Backrest offers four hardware options to accommodate a span of priorities and wheelchair configurations.

  • SH - Easy to install, 2-point, quick-release hardware that allows for numerous attaching positions
  • RH - 25% lighter than SH hardware and optimized for ultra lightweight wheelchairs without compromising adjustability
  • TH - 2-point, quick-release hardware optimized for tilt-in-space wheelchairs, with a lengthened attachment pin and 226kgs weight capacity
  • 4-Point - Quick-release hardware that withstands greater force by distributing across four mounting locations

Spine-Align: Let the Back Fit the User

Spine-Align: Let the Back Fit the User

Fitting the back to the user not the user to the back is the goal of the Spine-Align Posture Conforming system. This is accomplished by combining a wide range of individual foam components to create unique shapes that optimize postural support, evenly distribute pressure, and maximize function. Velcro strips attach to each shape so they can be placed into hundreds of configurations. The flexibility of the system is boundless.

 Heating/Ventilation (HV) Surface Technology

Heating/Ventilation (HV) Surface Technology

The J3 Wheelchair Back now offers heating/ventilation technology designed to help manage an individual's microclimate for exceptional comfort. Too hot? Flip the switch to cool down. Too cold? Flip the switch to warm up.

Learn more about the HV technology here.

Dimensions
Width:12" to 26"
Height:Lower Thoracic: 6.5", 8", 9.5" / Mid Thoracic: 12", 13.5", 15" / Upper Thoracic: 16.5", 18", 19.5" / Shoulder Height: 21", 22.5", 24"
Weights
Maximum User Weight:12" to 20" widths: 136kgs / 22" to 26" widths: 226kgs
Product Options
Support Level:Low Thoracic, Mid Thoracic, Upper Thoracic, Shoulder High
Cover Type:Air Exchange / Microclimatic
Contour:Shallow, Mid Contour, Deep Contour, Mid Deep Contour and Posterior Deep Contour

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Frequently Asked Questions

Yes like all gels. That's why we recommend not to leave a gel cushion in a car in a very cold weather. If you forget it, then leave it at room temperature so the gel regains its fluidity.

Occupational therapists will be able to assist you and advise in regards to good positioning - and what would be the correct equipment to use.

There are numerous advantages, including the greater postural support and a good alignment of the back structure. Pressure distribution is also improved, and also stability, comfort and functionality.

Whether they're fitted on Sunrise Medical wheelchairs or other wheelchairs made by other companies, JAY's back fasteners are universal - and will cover a large number of backrest tubes.
