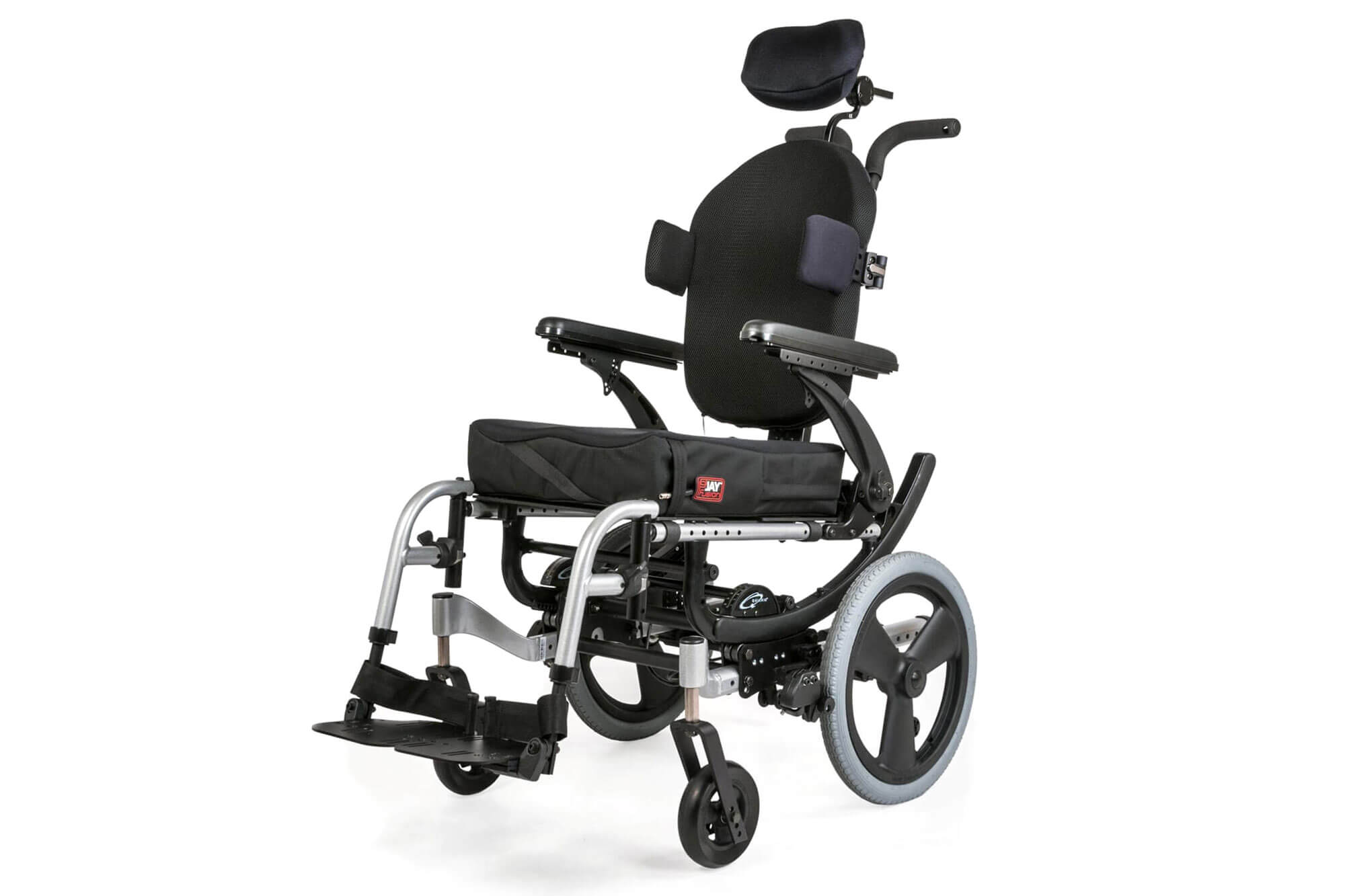

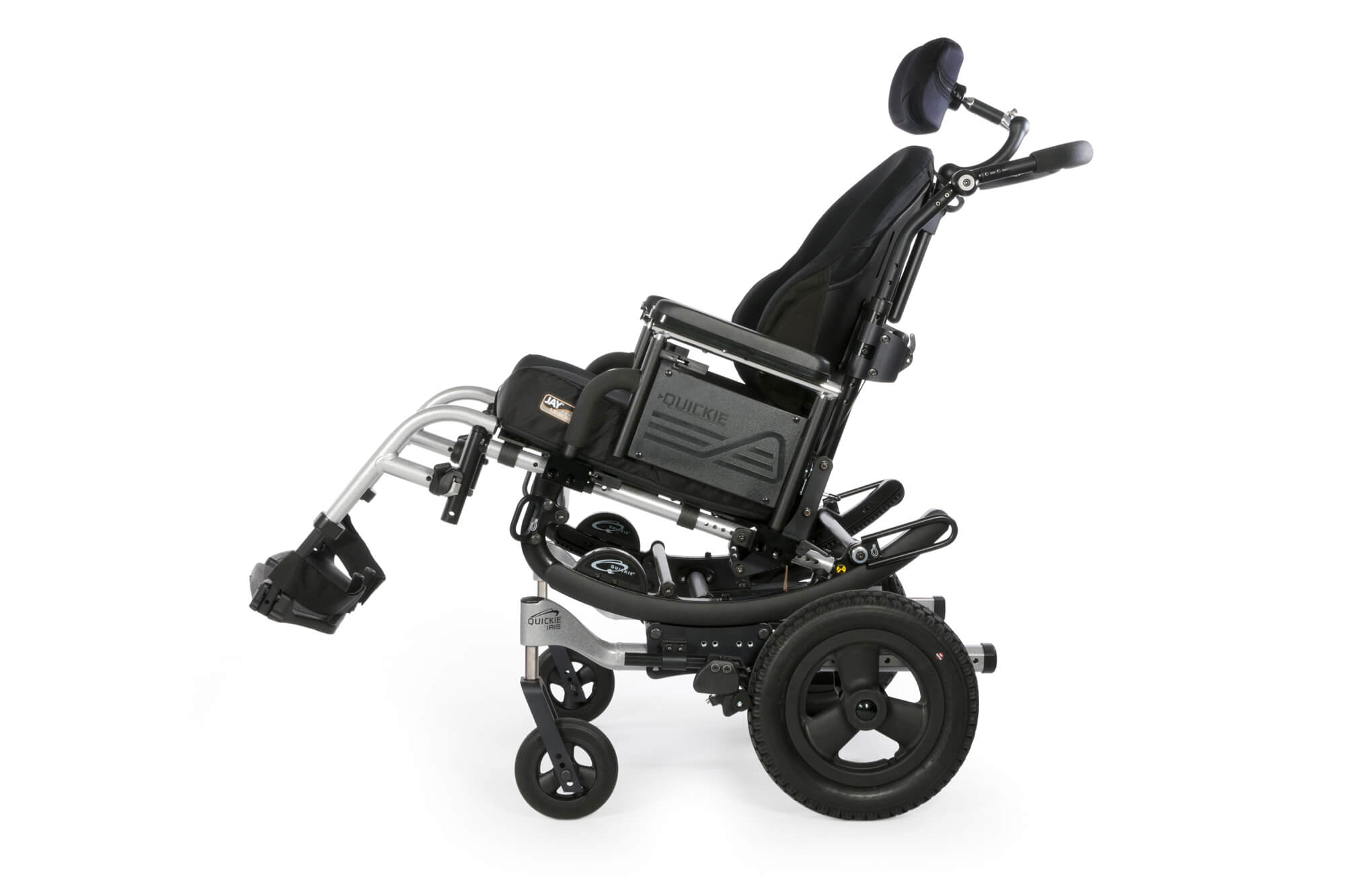

QUICKIE IrisTilt In Space Wheelchair

QUICKIE IRIS: From Invention to Perfection

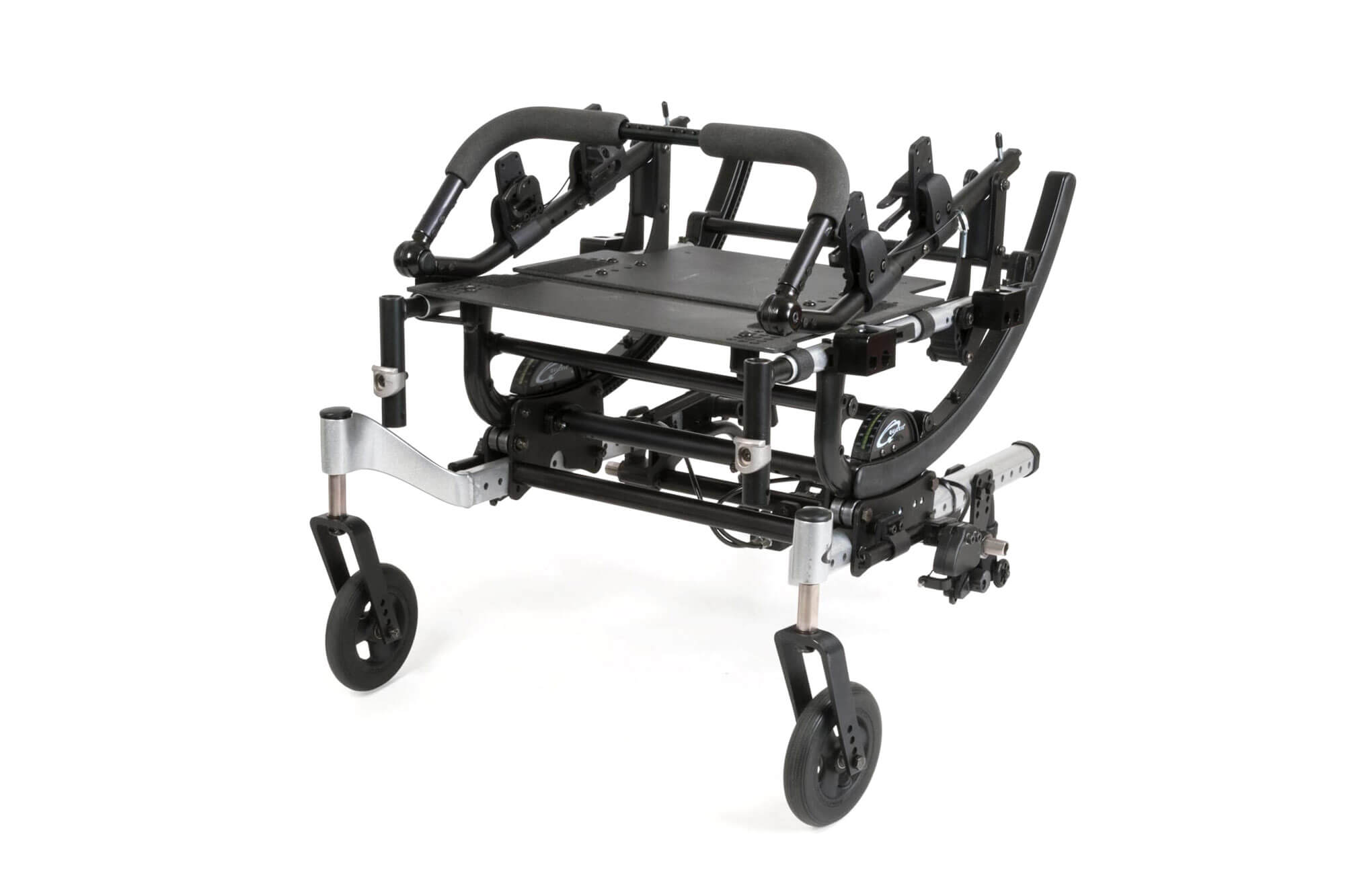

The QUICKIE IRIS^® employs a unique tilt mechanism with a curved rocker arm, enabling the seat frame to rotate on the base frame while keeping the individual's center of gravity (COG) closely aligned with the chair's center of rotation (COR). This alignment is maintained throughout the tilt cycle, offering several advantages over other tilt systems. The IRIS allows the shortest wheelbase to enhance maneuverability without compromising stability. The alignment of COG and COR reduces the risk of front-loading the casters without sacrificing safety. Additionally, the optimal alignment minimizes the effort required for tilting, promoting smooth and effortless movement. The constant COG alignment helps eliminate issues associated with horizontal shifts in other tilt systems, such as triggers for spasticity, agitation in riders with cognitive issues, and protective extension reactions.

The QUICKIE IRIS features a Standard weight capacity of 136 kg. and a Heavy Duty weight capacity of 181 kg.

Power Tilt

The Power Tilt feature puts the rider in charge of their own comfort all day long. With a simple toggle switch conveniently located on the armrest, the rider can effortlessly adjust their body position for maximum comfort, relaxation, and skin protection. Easy to use and designed to enhance their sitting experience, Power Tilt gives more control to the rider. This feature not only improves comfort, but also helps with sitting tolerance, allowing the rider to participate more independently in daily activities and connect better with the world and those around them. Power Tilt is available for the IRIS, IRIS Heavy Duty, and the SR45 models.

Attendant Control

Though the QUICKIE IRIS is effortless to tilt, with the Attendant Control, caregivers can tilt the rider without any manual effort. The control panel, displaying the battery gauge on top, eliminates the guesswork for charging time. Attendant Control is versatile and can be hung anywhere on the chair.

Toggle Switch

The Toggle Switch provides flexibility by being mountable either vertically or horizontally, catering to the rider's preferences for easy reach. Conveniently placed on the toggle switch, the charging port ensures easy access. The Power Tilt feature is also available as a retrofit kit for added convenience.

Reverse Configuration for Independent Mobility

Opt for an IRIS with reverse configuration if full tilt for pressure distribution and the ability to self-propel is desired. With a larger wheel in the front, this setup enables the rider to have increased control of the wheel, enhancing self-initiated movement.

Ride Designs

A Ride Designs Seating System works well on a QUICKIE IRIS to provide intimate support where needed, matching unique body curves while changing position in space. A Ride seating system also helps boost postural control and stabilize the pelvis and trunk, often resulting in increased performance and freedom of movement, while enhancing pressure distribution away from bony prominences.

Intelligent Rotation in Space Technology

The Quickie Iris, with 55° of Intelligent Rotation in Space Technology, can even adjust as change happens! If the client changes size or weight, if postural needs or even the seating changes, the frame can be adjusted. This means the chair will always have effortless and smooth tilting while having a short, manueverable wheelbase.  Learn more about this innovation in engineering and how these adjustments can be made to the frame.
