QUICKIE Q200 RRear-Wheel Power Wheelchair

Ultra-compact for indoor agility, with stability and performance that‘s just at home on the city streets

The ultra-compact outdoor / indoor entry level powerchair.

Whether its around the home, the local cafe or shopping mall, the Q200^® R is in-touch with its environment inside and out. With an ultra-slim base and tiny turning circle, even the smallest place will feel big.

Precision-measured in length, the Q200 R (1070 mm) will conveniently fit in-and-out of floor lifts and other short spaces without the traditional sacrifice of stability. Effortlessly turn in narrow hallways, kitchens and other restricted spaces without the need for complicated manouvres.

This wheelchair is a highly configurable product with many options and accessories. Your local authorised dealer will be able to provide a price quotation.

Contact

Smart base technology

With the Q200 R, our vision was to create a TRUE indoor/outdoor powerchair. One with super-tight indoor manouverability and ZERO compromise on outdoor stability and performance. But how do you design such a finely-balanced power wheelchair?

Lean towards a large drive-base and you'll encounter difficulty manouevering in tight environments. Go too small and it'll be too tippy with a loss of traction. Finding the perfect combination requires testing 100's of configurations. So that's exactly what we did - with SMART BASE TECHNOLOGY.

The result is the QUICKIE Q200 R. A legitimately compact entry-level powered wheelchair that delivers the very-best traction, stability and even the ability to climb kerbs of up to 100 mm.

Q200 R Key Benefits

SMARTLY DESIGNED to challenge indoor/outdoor powerchair standards, the QUICKIE Q200 R is ultra-compact for indoor agility, with stability and performance that's just at home on the city streets. Smart design, smart looks at a smart price - it's not just an entry-level powerchair, it‘s your every-day powerchair.

Outdoor performance

Carefully calculated dimensions to deliver the very-best traction and stability outdoors. Punchy 55 Ah batteries for 31 km of adventure.
Compact indoor agility

Ultra-slim base width starting at 580 mm and a turning circle from 1700 mm. Simple, intuitive controls for a drive that's made for the twists and turns of everyday life.
Smart base technology

The innovative testing method used to understand how geometery changes to a drive base can affect performance, creating a precision-measured TRUE indoor/outdoor powerchair.
Stylishly practical

A streamlined, minimalistic design contrasted with sleek, black bodywork. Make it personal with a selection of vibrant colour inlays.
Transport friendly

DAHL compatible to drive your vehicle from and crash-tested for use as a seat whilst in transport. Weighs in at a ridiculously-light 98 kg, making it a breeze to hoist.

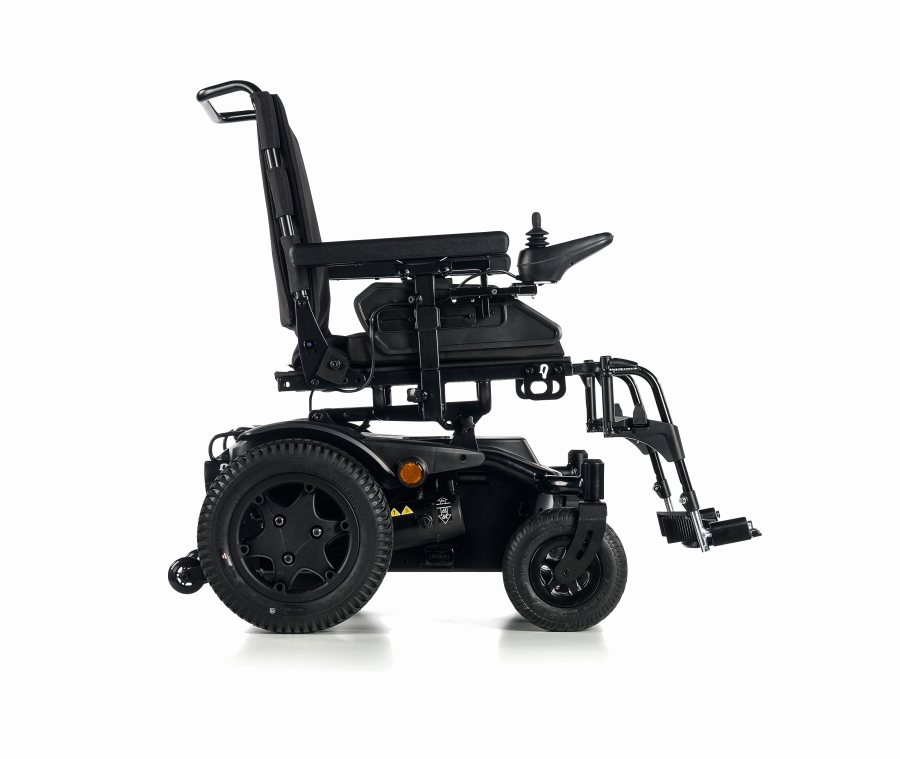

Great outdoor performance

With a longer length of 1070 mm, 580 mm width and sporting bigger 14'' drive wheels and 9'' castors, the Q200 R provides greater stability and traction than its little brother. That extra-muscle will come in useful when riding over rough, uneven terrain and also allows you to climb kerbs of up to 100 mm.

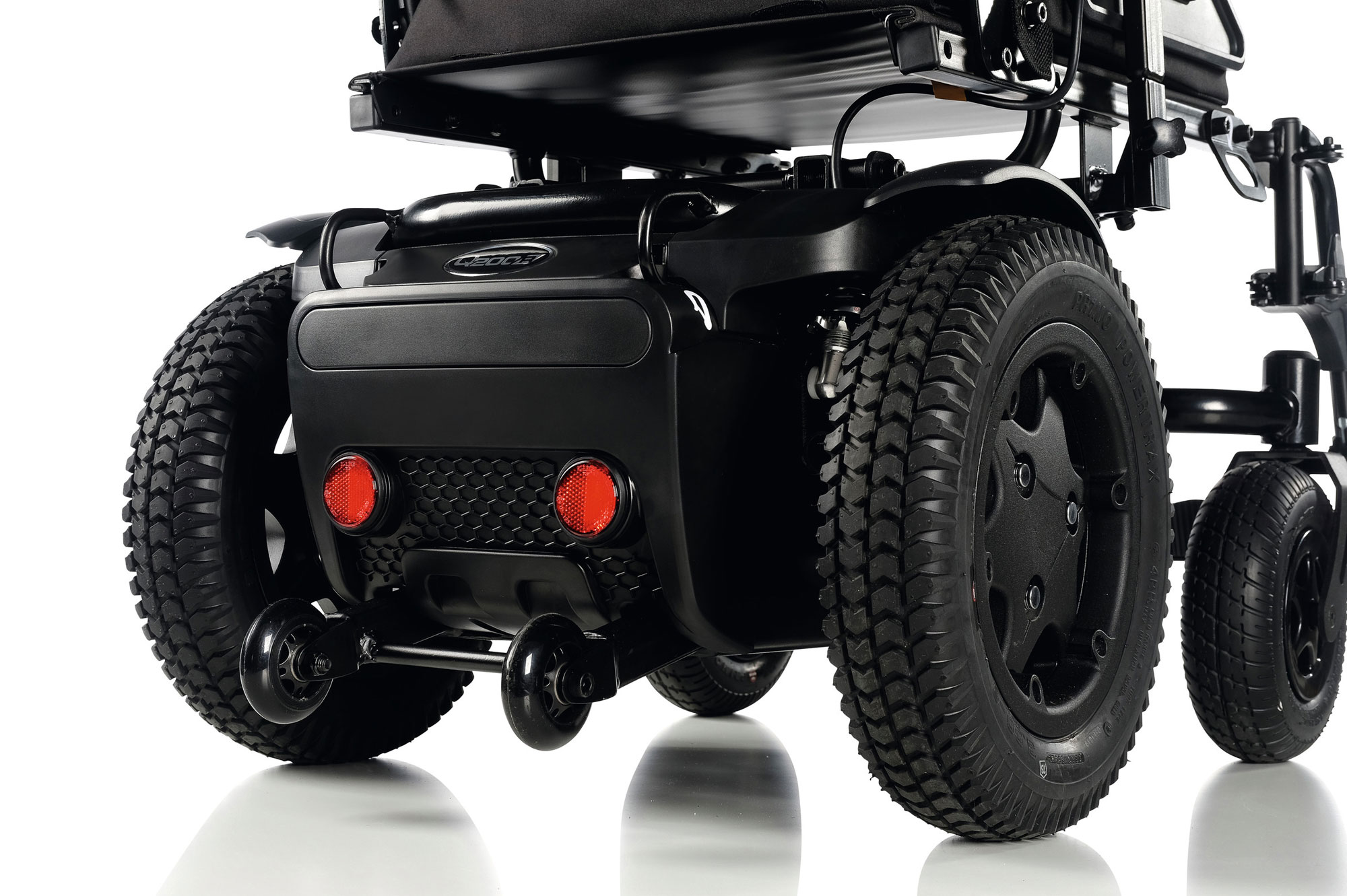

Need a little assistance climbing obstacles? The Q200 R‘s low-impact kerb climber will tackle kerbs of up-to 100 mm at low speed and even from a standing-start (so your seated position will be maintained whilst transitioning up the kerb).

The kerb climber fits snuggly behind your footrests, eliminating the problem of it dominating your footspace like traditional kerb-climbers - especially when tranferring in-and-out your powerchair.

Powered by punchy 55 Ah batteries, the Q200 R loves a spin around town and longer city trips. With the stamina to go 31 km on a single charge, you‘ll have plenty of time to stop-off for other adventures along the way.

Precision-testing determined that our 1070 mm base-length provides the best stability to prevent tipping and keep you safe - even when travelling up hills of 6 degrees.

Primed for public transport, the intuitive Q200 R is so compact and manouverable, getting on-and-off trams, buses and trains is a breeze. Prefer to travel by car? The Q200 R can be compactly stored in the boot or used as a seat whilst travelling.

The legrests and controller can also swing outwards, so the Q200 R can get even closer to objects like tables and chairs for an easier transfer in-or-out of your powerchair.

Primed for public transport, the intuitive Q200 R powered wheelchair is so compact and manoeuvrable, getting on-and-off trams, buses and trains is a breeze. Prefer to travel by car? The Q200 R can be compactly stored in the boot or used as a seat whilst travelling.

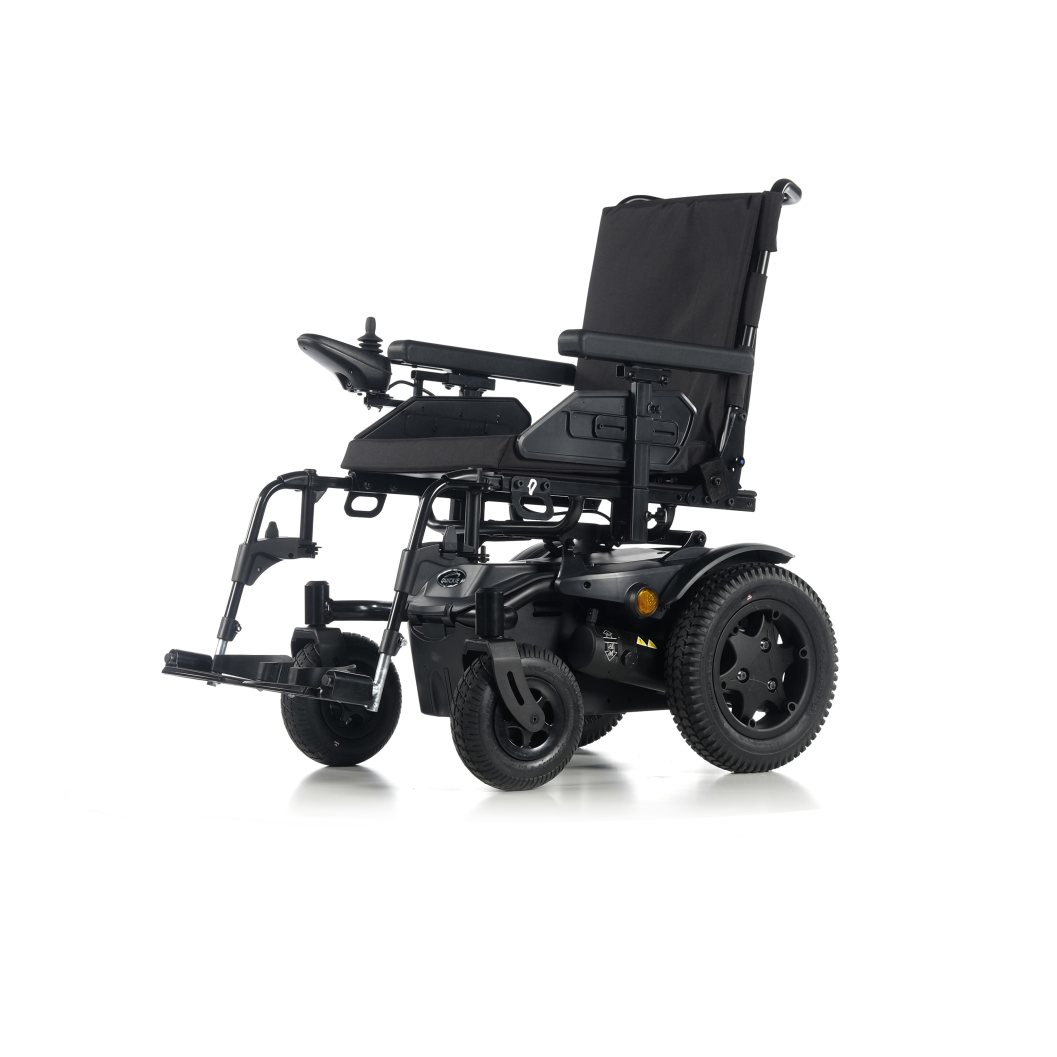

Sit back and relax

The Q200 R seating has been designed to fit you. With plenty of settings and a 5-strap tension adjustable back to meet postural requirements, take comfort in knowing that if your needs change, so can your seat.

Seat adjustments include:

Seath depth from 405-505 mm
Optional Legrest width from 380-490 mm
Backrest angle from 0, 4, 8 and 12 degrees
Seat angle from 0, 3 and 6 degrees
Seat width from 430-500 mm
Side guard from 0-50 mm
Optional seat height from 450 mm
Armrest height 230-305 mm

Superior indoor manouverability

Boasting the smallest footprint of 580 mm width and 1070 mm length, the Q200 R‘s turning circle is a tiny 1700 mm, so navigating even the tightest of spaces is a breeze. Going out? The Q200 R provides a stable ride on urban roads and paths, ideal for those day trips out. Unbelievably light at 98 kg, the Q200 R is easy to hoist in and out of your car.

The legrests and controller can also swing outwards, so the Q200 R can get even-closer to objects like tables and chairs for an easier transfer in or out of your powered wheelchair.

Turn heads and your chair everywhere you go. With a turning circle of only 1700 mm, you can effortlessly turn in narrow hallways, kitchens and other restricted spaces without the need for complicated manouvres. Navigating even the tightest of spaces is a breeze.

Fed up of clipping the side of your powerchair or scratching the paint work when squeezing through a tight doorway? The Q200 R‘s ULTRA-SLIM BASE can go where other indoor/outdoor powerchairs won‘t fit - so even negotiating narrow paths or packed tables at your favourite cafe will be no trouble with the unbelievably narrow 580 mm width.

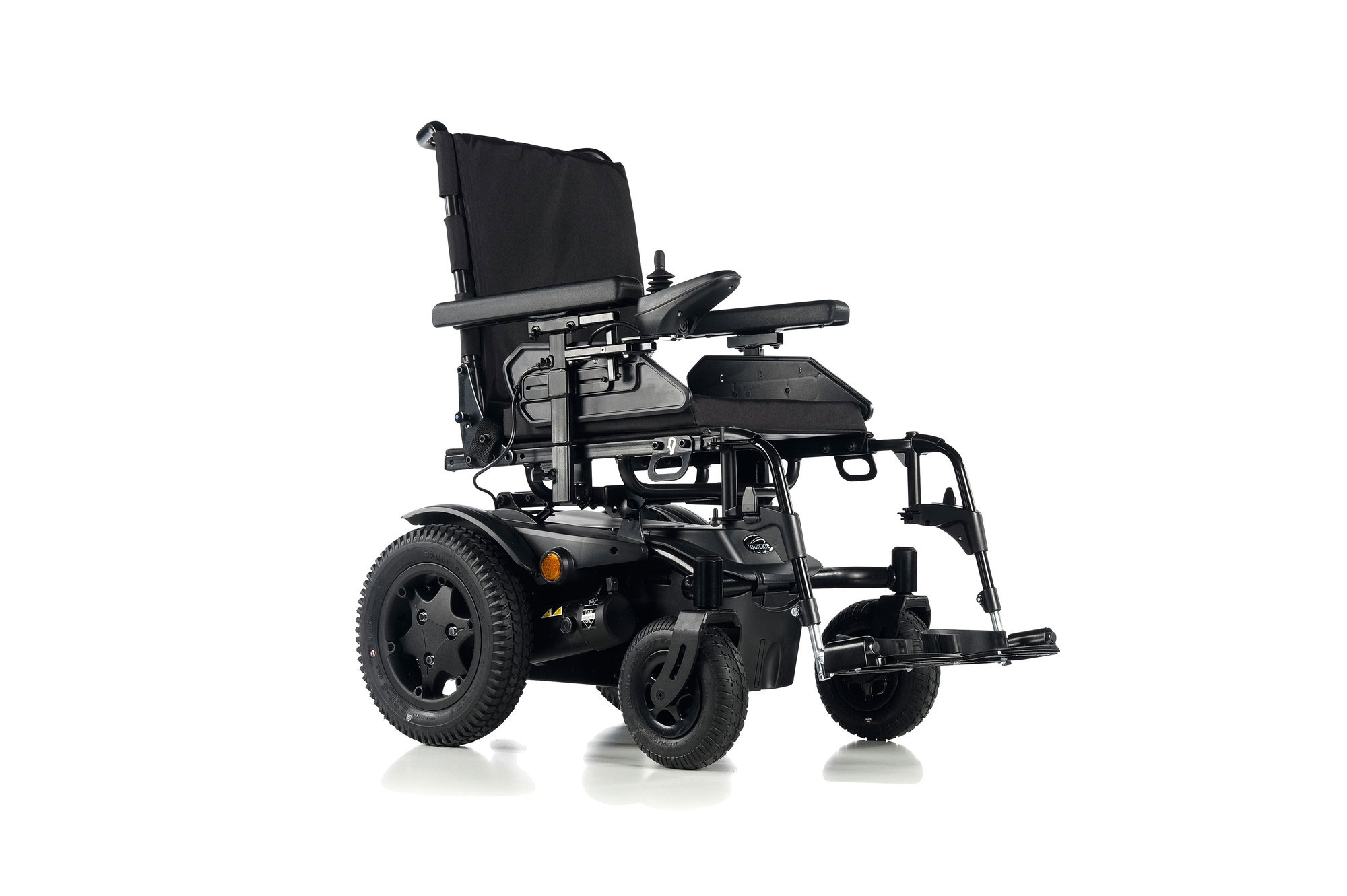

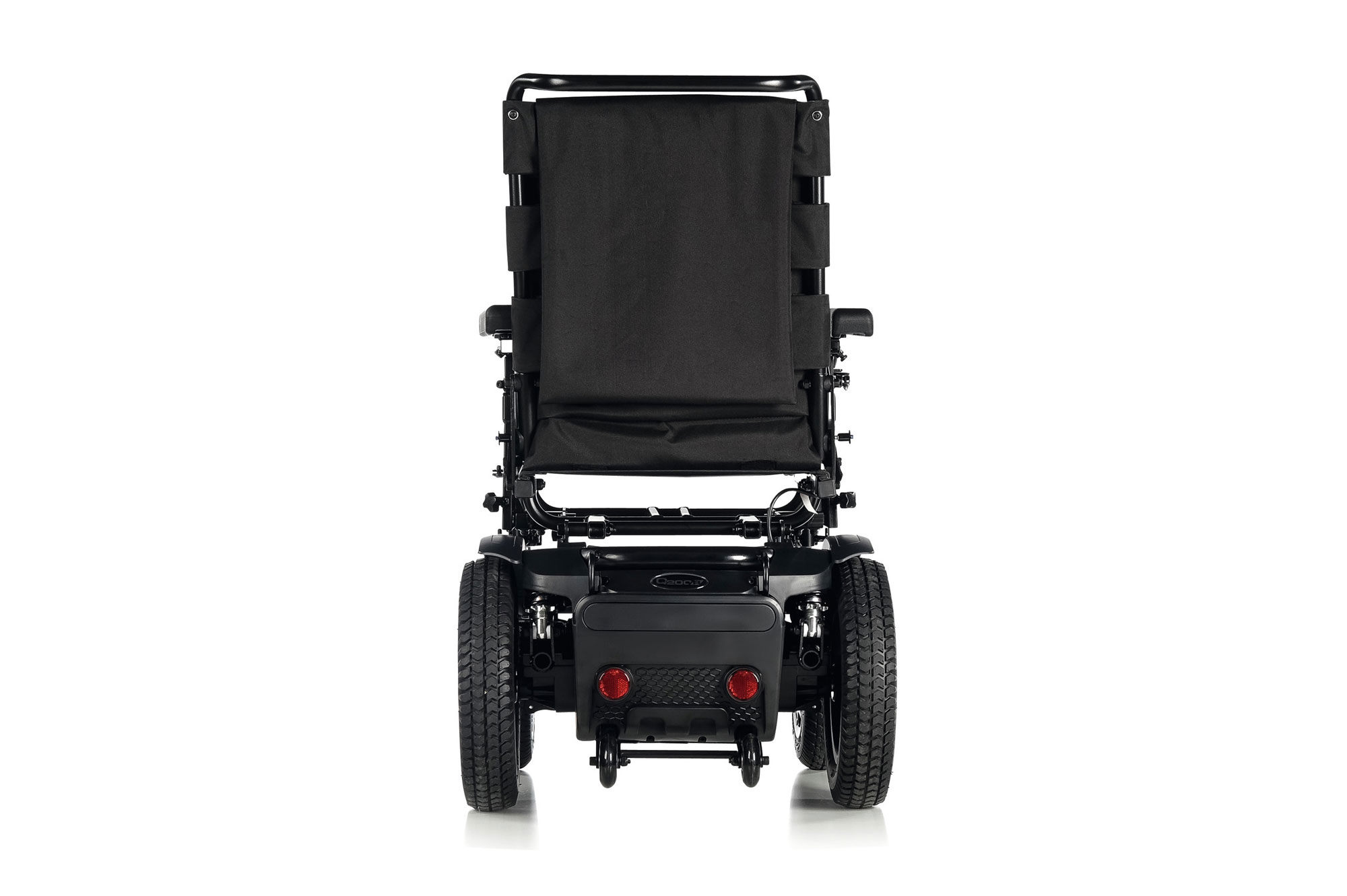

Media

Specifications

Dimensions

Width:580 mm (22.5'')

Length:1070 mm (42'')

Seat Width:430 - 500 mm (17'' - 19'')

Seat Height:450 mm (19'')

Seat Depth:405 - 505 mm (16'' - 20'')

Seat Tilt:0° - 6°

Backrest Height:500 mm (20'')

Turning Radius:1700 mm (67'')

Performance/Weights

Max. Range:31 km

Speed:10 kph

Batteries:55 Ah

Maximum Safe Slope:6°

Max Kerb Climb:70 mm - 100 mm (with Kerb Climber)

Electronics:VR2

Min. Weight:from 98 kg (incl. 55 Ah batteries)

Maximum User Weight:136 kg

Transportation

Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19 / WC19.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
