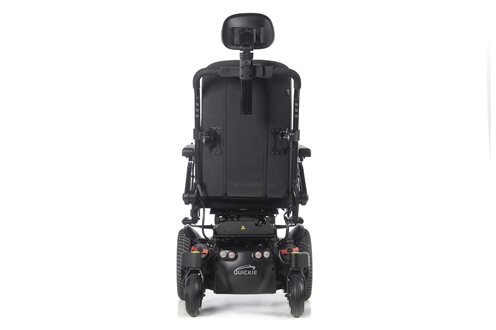

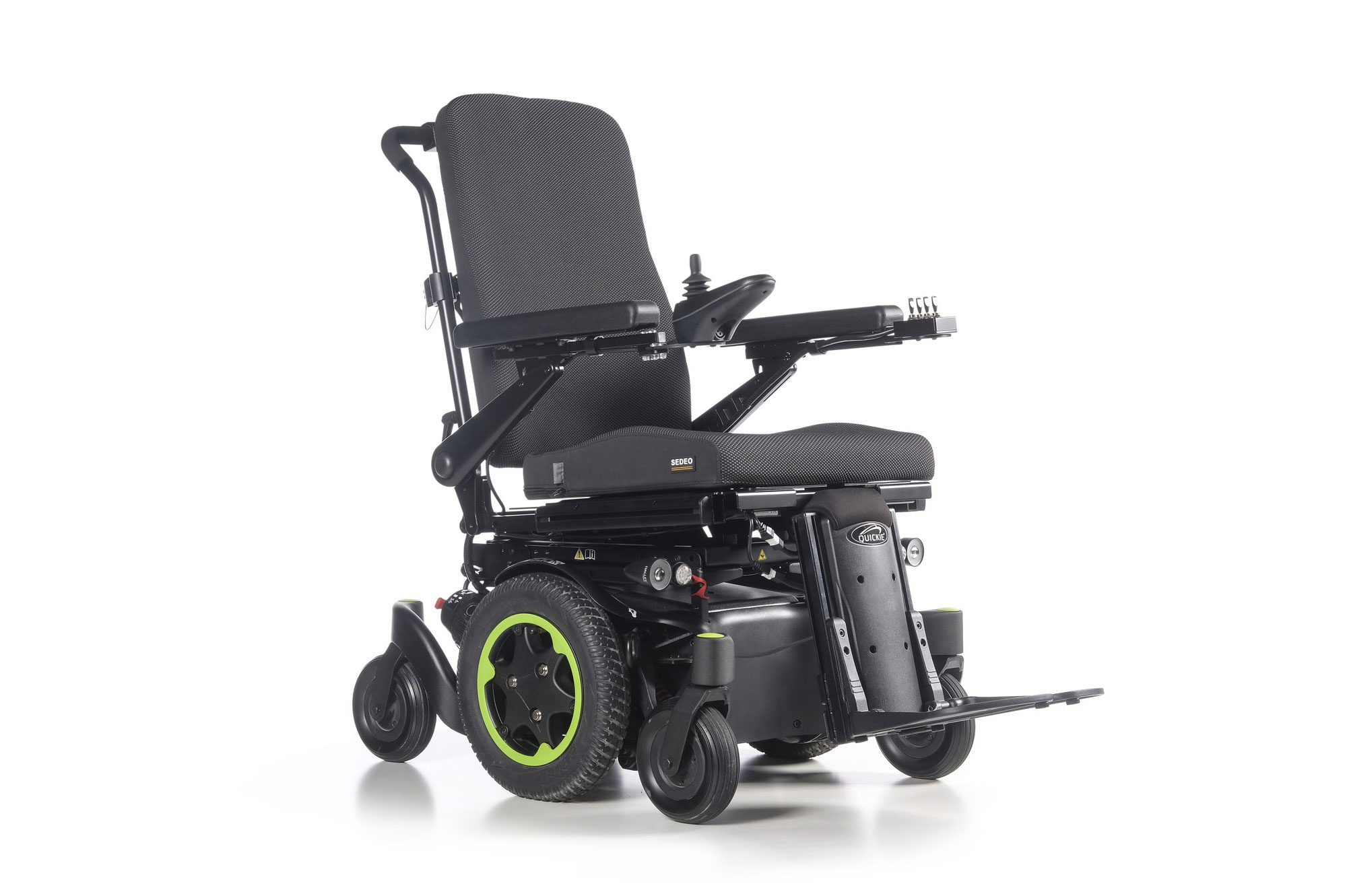

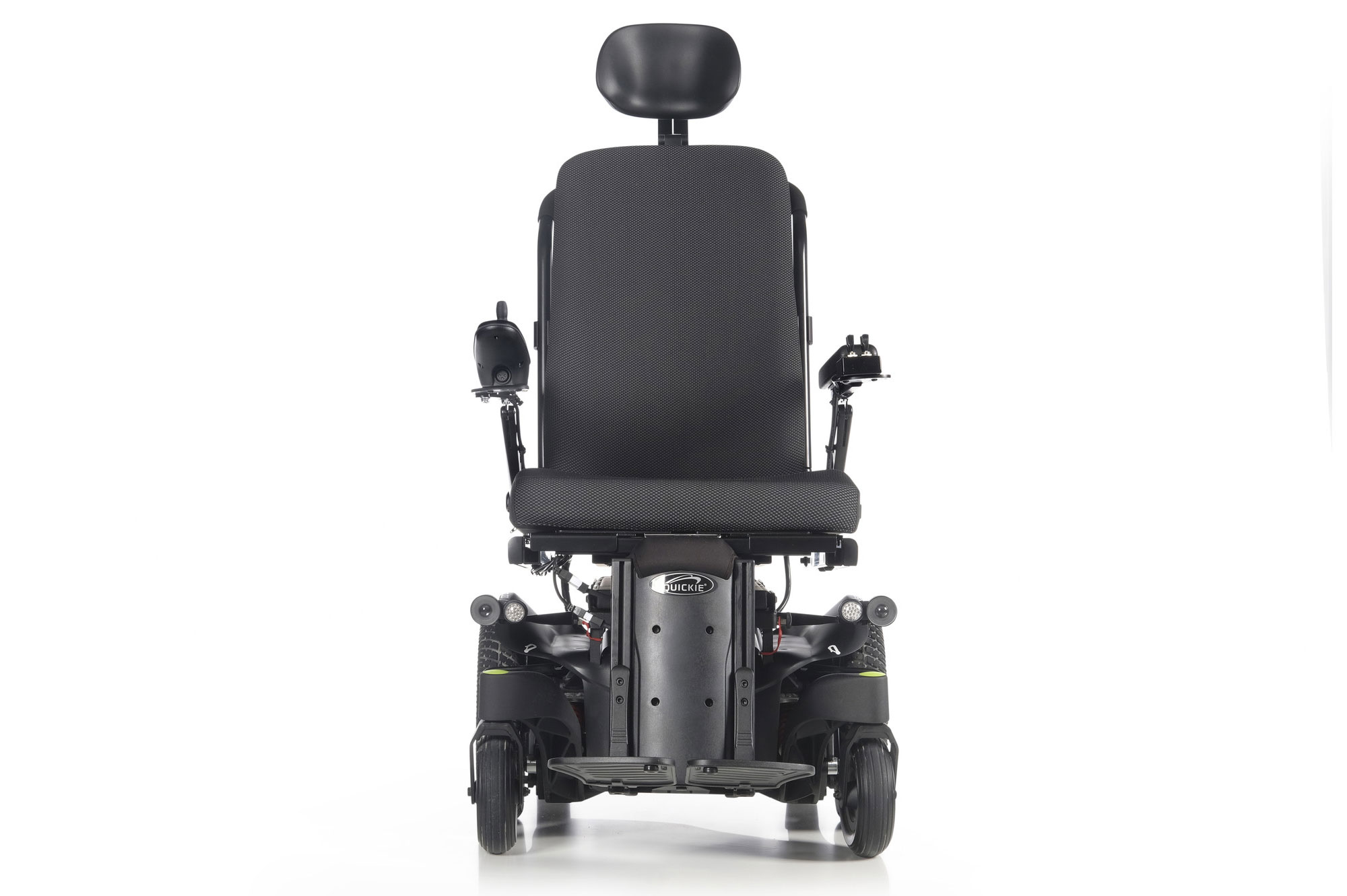

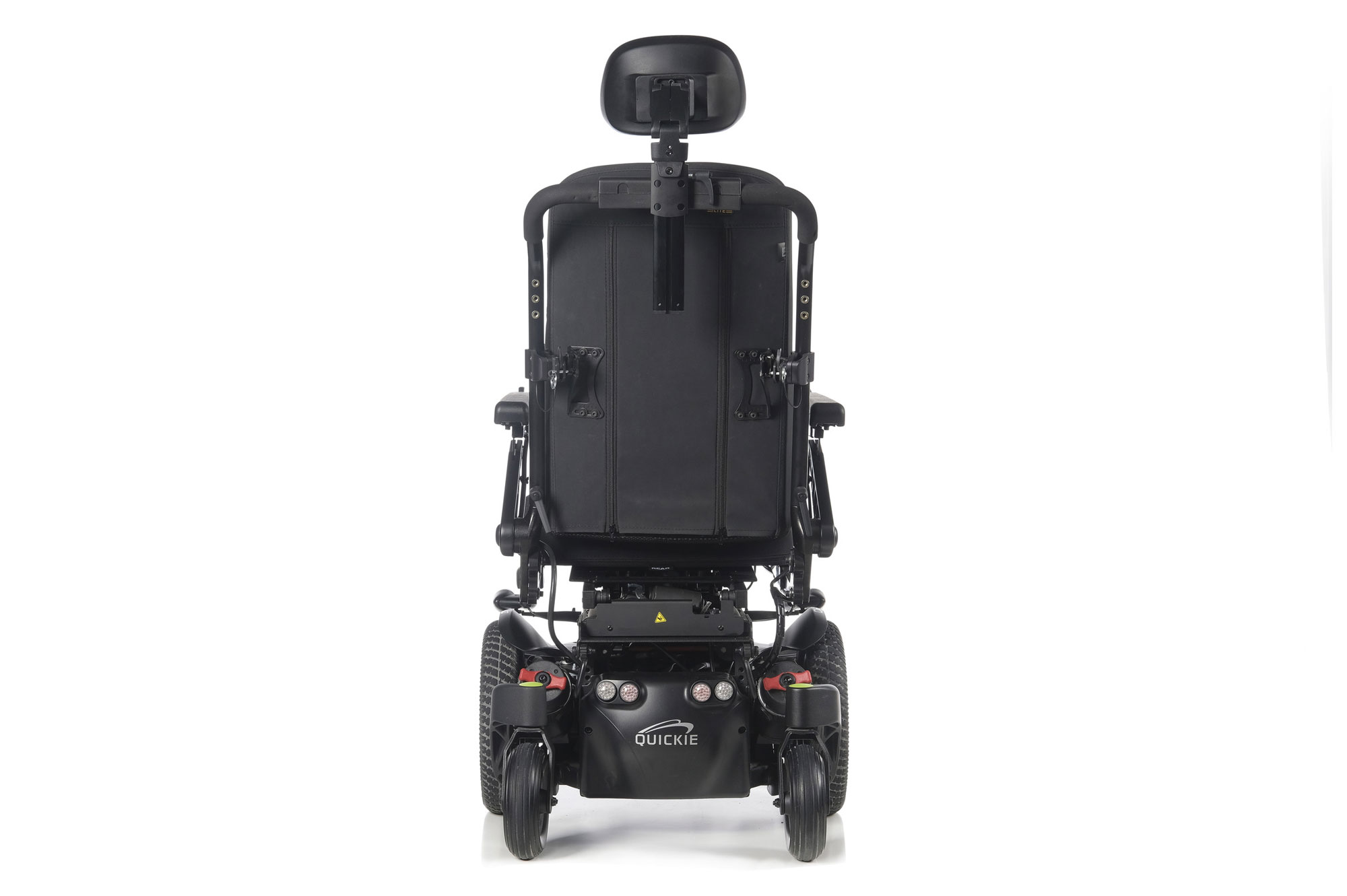

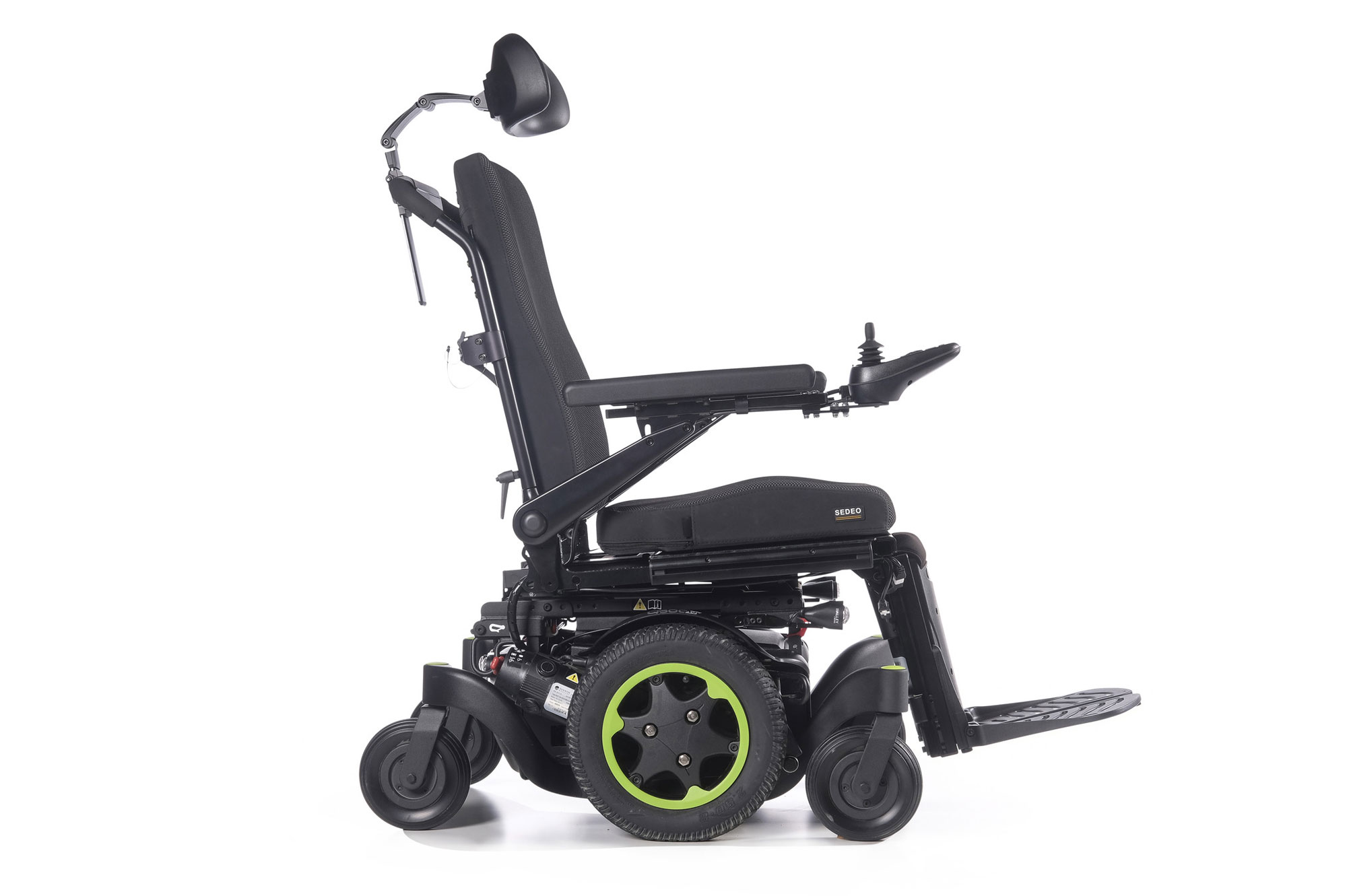

Q500 M SEDEO LITE Mid-Wheel Powered Wheelchair

Make your own adventure

Superb indoor manoeuvrability, outstanding outdoor performance, headturning style

The new QUICKIE Q500® M base balances superb indoor manoeuvrability with outstanding outdoor performance and head-turning style. All of these combined with the benefits of the multi adjustable SEDEO® LITE seating and the most advanced controls, creates the perfect powered wheelchair for any adventure.

Request a brochure or demo

The evolution of mid-wheel drive performance.

The new QUICKIE Q500 bases balance superb indoor manoeuvrability with outstanding outdoor performance and head-turning style.

Superb indoor agility

Turning on its own axis, enjoy intuitive driving and excellent manoeuvrability in tight compact spaces with its narrow (620 mm) base and a 560-630 mm turning radius. Also, easily sit under tables and access Wheelchair Adaptive Vehicles (WAVs) with a low seat height from just 415 mm.

Outstanding outdoor performance

Enjoy a smooth and stable ride, even over rough terrain, with QUICKIE's patented all-wheel suspension - six independently suspended wheels absorb all those bumps.

QUICKIE's anti-pitch technology eliminates pitching on slopes, and with all your weight located directly above the drive wheel to maximise traction you've never been in a safer driving position.

The power to get you where you want to go.

Enjoy power and speed at your fingertips with the 4-pole high torque motors. Choose from 6 kph high torque or 10 kph standard for the ultimate performance. Plus, with a choice of 60 Ah or 72 Ah batteries, you can maximise your range of up to 40 km and experience outdoor performance like never before!

With ultra-reliable high torque 4-pole motors powering speeds of 6 kph high torque or 10 kph standard and a choice of 60 or 72 Ah batteries to maximise your range, you can always travel in confidence with the Q500 M SEDEO LITE.

The evolution of mid-wheel drive performance.

SEDEO LITE - Adjustable Seating

The SEDEO LITE seating system offers the height adjustable sling back with adjustable straps and a range of optional comfort cushions including two seat cushions and four back cushions with adjustable straps and different contours for a better comfort and positioning.

  • All adjustments of the SEDEO LITE can be done in a very quick and easy way, thanks to its self-explaining scales. You only need one tool. Parts can be adjusted, repositioned or turned to create the best support for the user and can be adapted to his/her changing needs.

  • SEDEO LITE offers the height adjustable sling back with adjustable straps, and a range of optional comfort cushions. This includes two seat cushions and four back cushions with adjustable straps and different contours for a better comfort and positioning.
    JAY cushions and backs and are also compatible with SEDEO LITE frame to cover higher clinical needs.

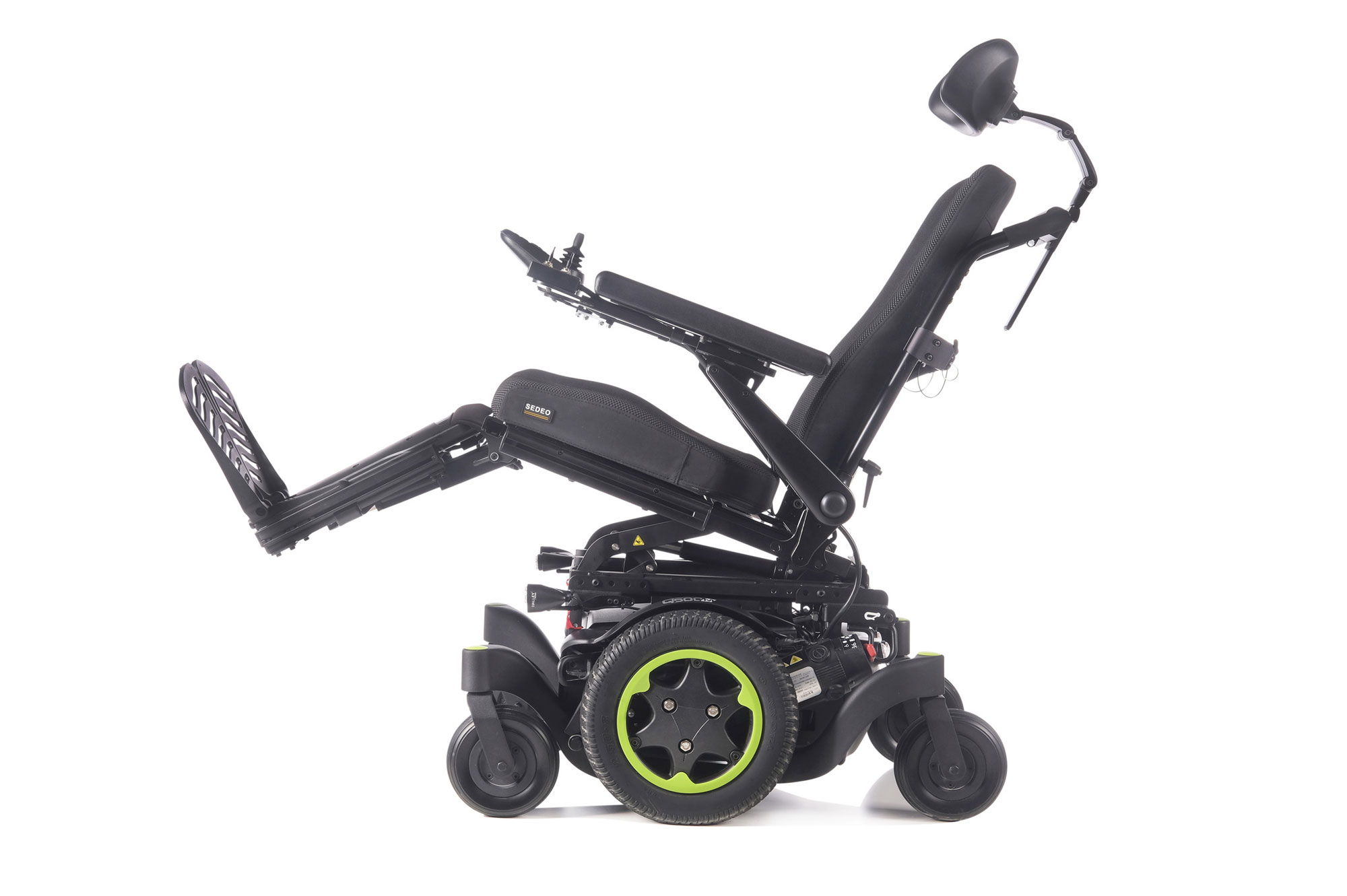

  • The swing away length compensating legrest allows you to reach the best position. A wide range of swing away and center mount legrests is also available, both in manual and power elevating versions - from simple version to the SEDEO LITE swing away legrest with many options.

  • The easy to operate flip back armrest gives you free transfer space. You can choose from a removable or reclining version (the latter is shown on the image to the right). All compatible with the different armpad options.

  • The integrated headrest mount provides a new standard in adjustment and design. Compatible with SEDEO headrests (shown on the right: flexible headrest) & WHITMYER headrests.

  • Different positioning elements are available like swing away lateral thoracic supports, thigh supports and knee supports. All of them are easily swing away and detachable. The integrated seat rail offers many options for mounting the different positioning elements.

SEDEO LITE - Adjustable Seating

Control at your fingertips

Control your environment with the Q500 M SEDEO LITE and its advanced controller technology. Available with the reliable VR2 control and the superior R-Net advanced joystick, the large, easy-to-read HD display and simple to control paddle switches allow for intuitive operation.

CONNECT

Seamlessly take control of your environment using the integrated Infra Red functionality. Control your TV, docking stations and other home entertainment systems easily via your joystick.

BLUETOOTH & IDRIVE

Control your phone, computer, tablet and any other Bluetooth and i-devices with this useful optional extra. Connect and control up to four devices.

QUICKIE PATENTED ASSIGNABLE BUTTONS

Change the function on any button on your joystick to any command you desire, thanks to QUICKIE's patented assignable buttons. You can also assign a second (long press) function to buttons, for quicker, simpler and smoother access to commonly used functions without having to use your joystick.

Arrange a QUICKIE Q500 M SEDEO LITE demonstration today.

Just want a brochure? Select the option below and we'll email you one instead. Under 18? Please don't provide us with any personal information. Read more about our data processing guidelines on our privacy policy.

How do we use your information for a demonstration?

Sunrise Medical will use your details to send you an email acknowledgement and to contact you to arrange your demonstration with a Sunrise Medical dealership. Don't worry, we won't pass your personal data to anyone before speaking to you first and asking for your consent. The information you give us will be stored in the UK, United States and Australia, and will be kept as long as necessary to fulfill your request (and no-longer than 1 year).

Sign up for email newsletters

Dimensions
Width:610 - 620 mm
Length:Max. 1130 mm
Seat Width:385 - 510 mm
Seat Height:415 - 490 mm
Seat Depth:410 - 560 mm
Backrest Height:460 - 510 mm

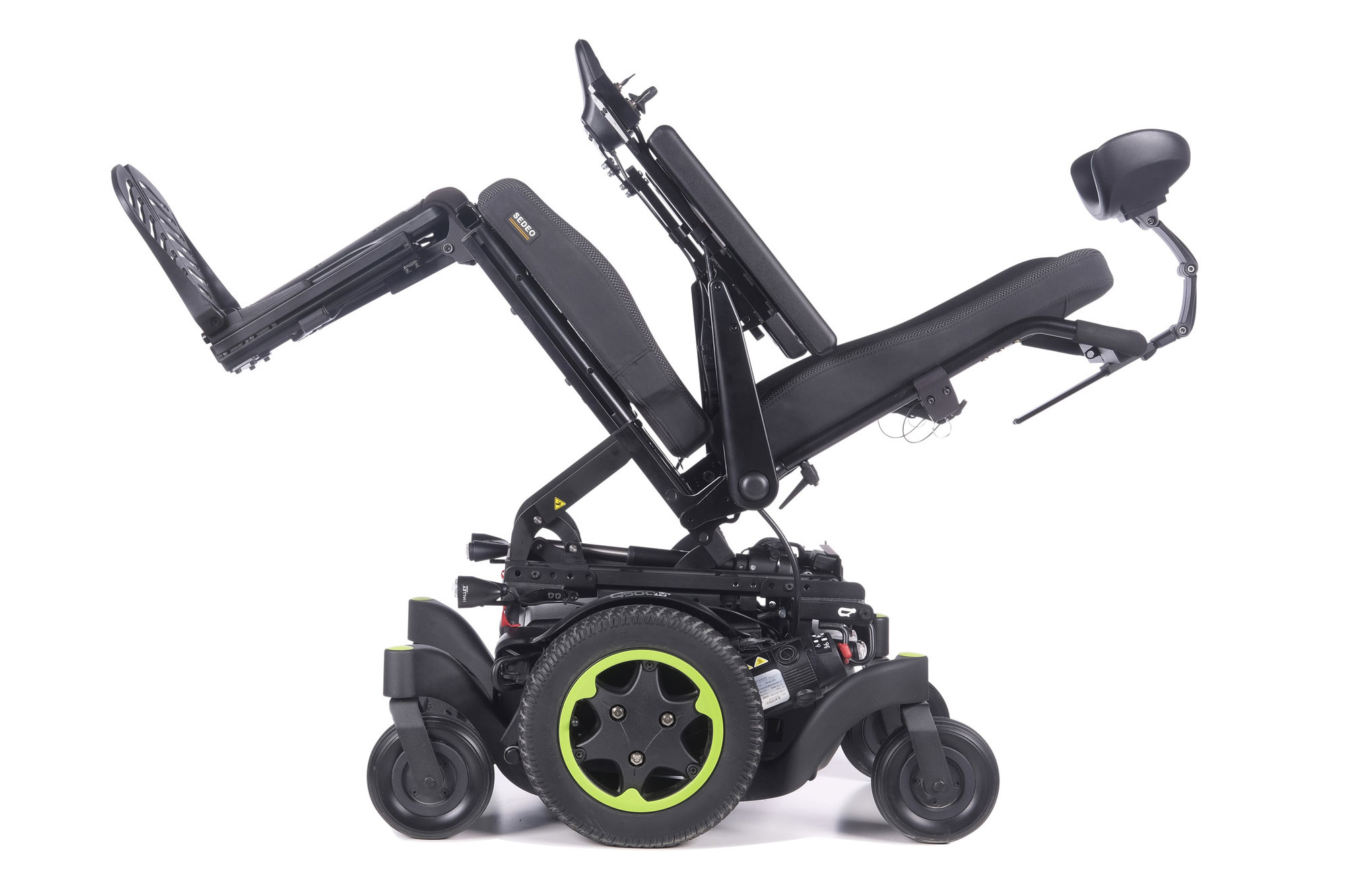

Back Recline:85° to 120°
Turning Diameter:560 - 630 mm
Performance/Weights
Speed:6 kph high torque, 10 kph standard
Batteries:60 Ah
Maximum Safe Slope:
Max Kerb Climb:70 mm
Electronics:VR2, R-Net
Min. Wheelchair Weight:140 kg
Maximum User Weight:136 kg

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
